Arco Smart E-bike Shelter with Rain Protection and Solar-Powered Charging Station

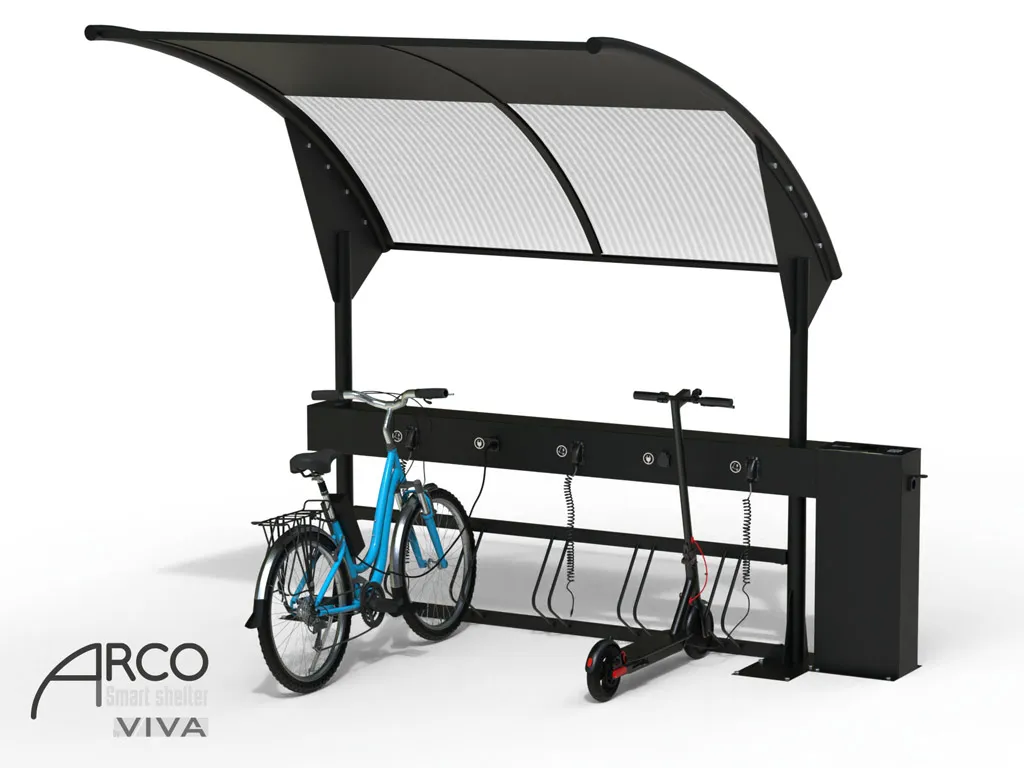

Modern Arco SMART five-space shelter for e-bikes and scooters, equipped with a fully solar-powered charging station, honeycomb polycarbonate and PMMA roof.

Structure composed of:
Straight and arch-bent steel tubes (diameter 76 and 60 mm).
The roof is made of a dual-protected, ribbed honeycomb polycarbonate panel, which is UV-resistant and reinforced by a steel frame on the underside;
a transparent PMMA sheet on the upper side embeds and protects the solar panels; the back of the roof features a channel for water drainage.

The front section is designed to accommodate a five-space steel rack module for electric bikes or scooters. In the center of the shelter, the PLUG module extends horizontally, consisting of a 200 x 200 mm tubular section containing two protected 220V Schuko sockets and three 42/48V stations for charging electric bikes and scooters with various connectors.

Each PLUG module includes two Schuko sockets and three 42/48V charging modules for e-bikes or scooters. Users can comfortably park their e-bike or scooter while it charges. An electronics enclosure is located on the side.

Technical Specifications:
2 x Schuko sockets with IP67 protection.
3 x multifunctional 42/48V charging stations with three types of connectors.
5 x bike or scooter racks.
Nominal power: 440W.
Nominal voltage: 230V.
Nominal frequency: 50Hz.
Socket type (category): flush-mount socket.
Protection type: IP67.
Storage capacity: 1.9 kWh.

Circuit Breaker:
1 x RCBO (Residual Current Circuit Breaker with Overcurrent Protection) Id 0.003 A.
Trip delay time: instantaneous.
Nominal current: 25/22 A.
Complies with standard: CEI EN 61008.
Indicator light: voltage presence.

Version Features:
Equipped with 2 USB ports mounted on the right side;
Cool white LED backlighting system;
System protection rating IP65.

Fixing and Maintenance:
The feet are pre-drilled for anchoring with M10 steel bolts. The smart module is removable and can be sent for maintenance without needing to dismantle the entire structure. The surfaces are duly protected by a 5P cycle and powder-coated. See material protection specifications. Registered design, registered smart technology.

ZERO WIRE SYSTEM, meaning no wiring of any kind is required. Simply place it in a sunny location, and the solar-powered shelter will provide all its services. The new ARCO shelter is designed to modernize today's cities with innovative technologies for controlling and using specific functionalities, aimed at meeting the modern needs of citizens. New cities are defined by innovation and targeted services; thanks to its countless technological functions, the shelter becomes not just a place for relaxation, but also a social hub where a new way of thinking about the city can be conceived.

Ample scope for customer customization. The diverse skills of our team and our knowledge of materials and processing technologies allow us to tackle any custom project. This shelter also qualifies as a product for energy communities, as it can not only supply power for its own services but also feed surplus energy back into the grid.

Unique Technical Features of this Version:
Photovoltaic module: Monocrystalline 440W power.
Batteries: AGM type, 160Ah capacity.
USB charging: 2 ports 5W and 2.2W.
E-bike and scooter charging: 3 x 80W.
220V Schuko sockets.

Optional:
Art. 391381 Air Pollution sensor for environmental pollution monitoring.
Art. 391383 GPS position sensor.
Art. 391386 Custom RAL color paint finishes upon request.
Art. 391388 Antibacterial UVC LED, also used to combat COVID-19 infection.
Art. 391398 Anti-vandalism presence sensor.
