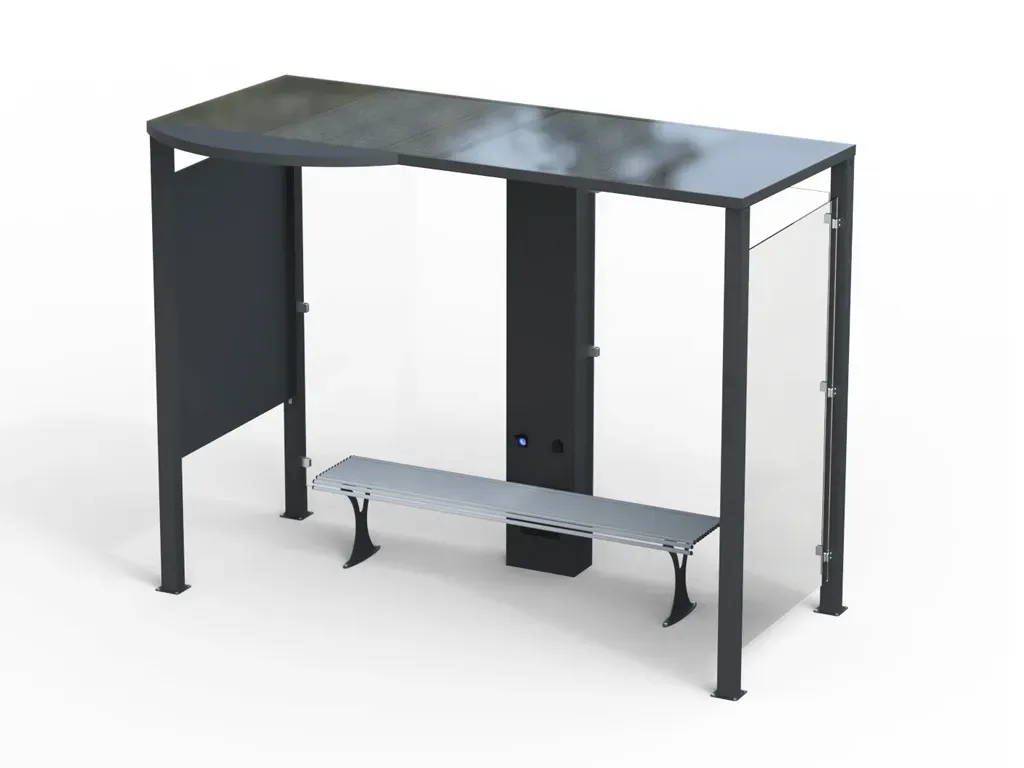

Smart Bus Shelter 3m Long with Photovoltaic Energy System and Neutral White LED Lighting

Smart Shelter 3m Long with Photovoltaic Panels for Bus Waiting Area with Bench.

General Technical Features:
Structure made with elements painted according to 5P cycle;
Module formed by vertical steel tubes (section 80 x 80 mm) straight and bolted to the shelter structure;
At the base of the tubes, there is a fastening plate with M10 bolts;
Shelter structure made of mesh with tubulars on which the photovoltaic panels rest;
The covering is designed to hold photovoltaic panels that power the system;
Photovoltaic panels embedded in the roof structure, with batteries and electronic management system positioned at the base;
Equipped with neutral white LED lighting system;
At the back of the cover, there is a channel for water drainage;
Central post with four USB ports for device charging;
Rear panels and side infills fixed to the structure with suitable steel brackets;
Seating made with lateral supports in 6 mm thick sheet metal and seat with n° 16 rods of 20 mm.

Unique Features of the Version:
Equipped with 4 USB ports for charging devices up to 2 A;
Neutral white LED backlighting system.

ZERO WIRE SYSTEM meaning no need for any type of wiring. Just place it in a sunny location, and the solar panel-powered shelter will provide all services. The new shelter from the VIVA™ series is designed to modernize today’s cities with innovative technologies in the management and use of specific functionalities, aimed at meeting the modern needs of citizens. New cities are characterized by innovation and targeted services; thanks to its countless technological functions, the shelter becomes a place not only for relaxation but also for gathering, where a new way of thinking about the city can be conceived. We can charge our smart devices thanks to the front USB ports and, through additional modules, connect to Wi-Fi, receive real-time information on traffic, CO2 emissions, weather conditions, etc. Communicating has never been so easy!

Ample space for customer customization. The cross-cutting skills of our team, knowledge of materials, and processing technologies allow us to tackle any custom project. Through cloud connection, the VIVA PORTAL software manages the network of stations remotely on any device, at any time. Control and verification of the system from a single location. Manage all your stations in real-time simply and efficiently, even in multi-user mode. Monitor your station network and verify the monitoring information sent. Battery charging monitoring; weather information; environmental information; charging and discharging devices; error prediction and reporting.

Module Features: The magic happens thanks to the modules, the beating heart of the system, which allow you to customize the product according to your needs.

UNIQUE TECHNICAL FEATURES OF THE VERSION:
Photovoltaic module: Monocrystalline 400W power.
Batteries: AGM type / Capacity up to 1.8 kWh.
USB charging: 4 ports 5W and 2.2W.
LED Light: Neutral white.

Optional:
Art. 391381 CO2 pollution sensor.
Art. 391383 GPS position sensor.
Art. 391386 RAL color painting upon request.
Art. 391388 Antibacterial UVC LED, also used to combat COVID-19 infection.
Art. 391398 Anti-vandal presence sensor.
Art. 391399 Custom printing on the smart module.

Dimensions: mm 1600 x 3000 x 2300 h
