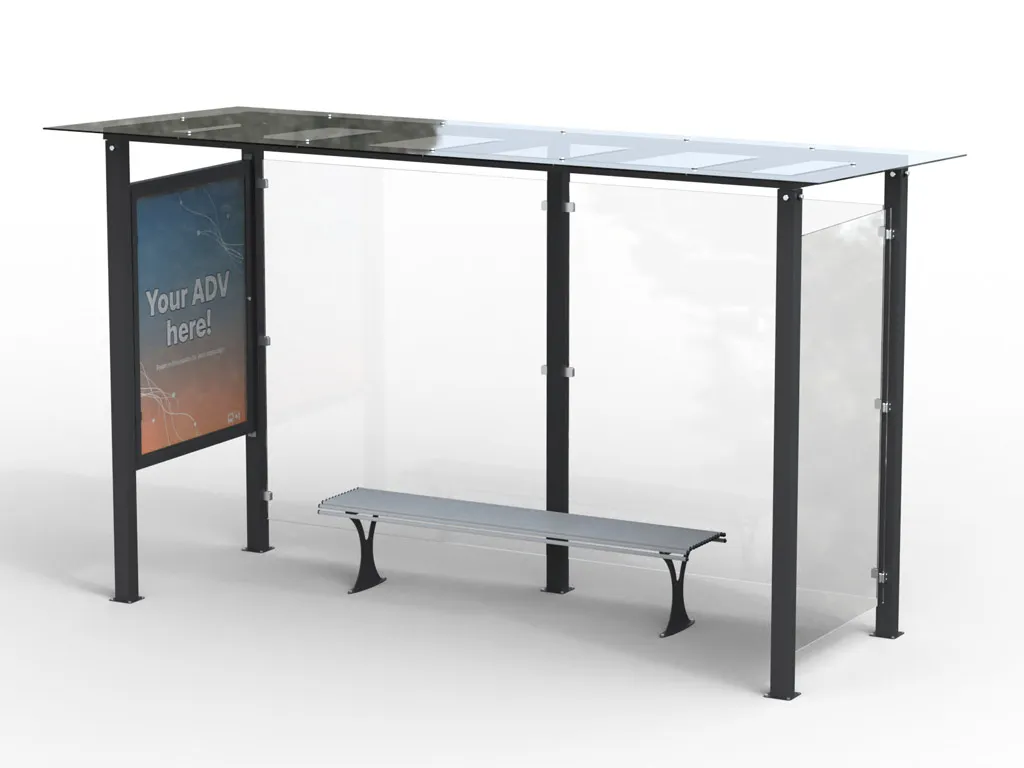

Future Bus Shelter, 4m Length

A 4-meter long bus shelter with a single-sheet PMMA roof and integrated bench. Bench length: 2 meters.



General Technical Features:

Structure made of components treated with a 5P painting cycle;

The module consists of straight steel uprights (80 x 80 mm section) bolted to the roof structure;

Base plates at the bottom of the uprights for anchoring with M10 foundation bolts;

Grid-like roof structure made of tubular steel, supporting a polycarbonate sheet;

The roof is designed to accommodate photovoltaic panels to power the system;

Rear and side infill panels are fixed to the structure with special steel clamps;

The seat is constructed with 6 mm thick sheet metal side supports and a seating surface made of 16 round bars (20 mm).

Overall Dimensions:

1700 x 4000 x 2300 h mm
