TECHNICAL SPECIFICATIONS REF. UNI40
Tapered pole in S235J quality steel (UNI EN 10219/1) with a circular cross-section, galvanized according to CE standards. Composed of straight-welded tubes of various heights and diameters to create the different tapers.

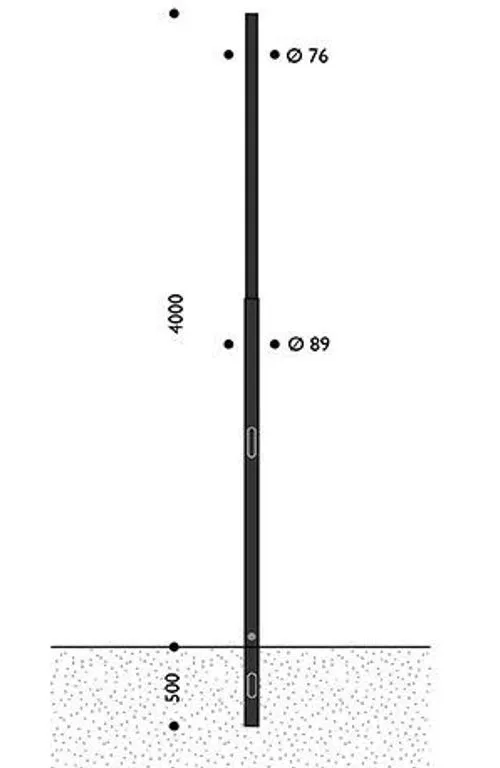

Suitable for mounting INNER or TPLuna arms. Above-ground height: 4 meters; foundation depth: 500 mm.
Constructed with two tapers: the first is 2700 mm long, and the second is 1800 mm long.
The tapers can be covered with ornamental rings (optional accessory).
Minimum yield strength: 235 N/mm², tensile strength: 360/510 N/mm², elongation at break: 26%. Dimensional tolerances conform to UNI EN 40/2 – UNI EN 10219/2.
Each taper is welded to the next through a certified process involving the following steps:
- Insertion of steel reinforcements into the larger diameter of the taper;
- Welding the reinforcements in multiple sections;
- Inserting and welding the second taper into the first;
- A cap made from galvanized steel sheet is welded to the first taper section.
At the base of the pole, there is a 50x150 mm slot for cable entry from the junction box, created via plasma cutting, and a grounding screw.
On the lower section of the pole, there is an additional 186x45 mm plasma-cut slot, which houses a 4-pole/3-way terminal block (for 1.5-16 mm² wires) and is covered by a locking access door.
The base of the pole is also protected by a heat-shrink sleeve.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
