TECHNICAL SPECIFICATIONS REF. UNI40
Tapered steel pole, S235J quality according to UNI EN 10219/1, with a circular cross-section. Galvanized according to CE standards, it is composed of straight-welded tubes of various heights and diameters to create the different tapers.

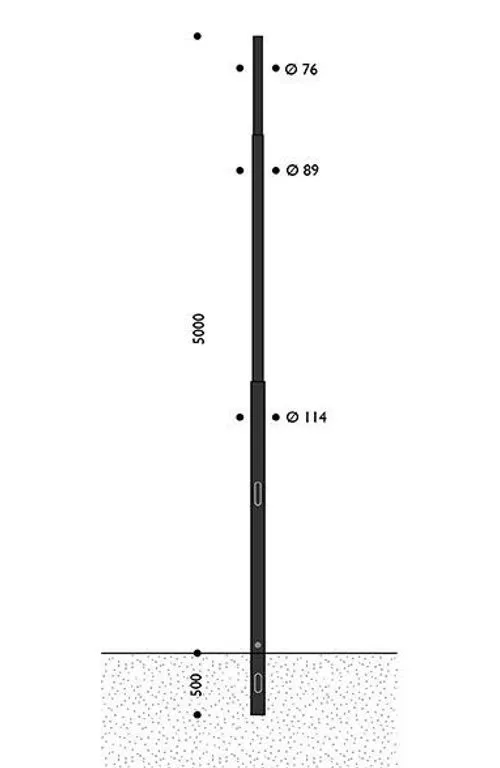

Suitable for mounting INNER or TPLuna arms. Above-ground height: 5 meters; foundation depth: 500 mm.
Crafted with three tapers: the first is 2700 mm long, the second is 2000 mm, and the third is 800 mm.
The tapers can be covered with ornamental rings (accessory).
Minimum yield strength: 235 N/mm², tensile strength: 360/510 N/mm², elongation at break: 26%. Dimensional tolerances (UNI EN 40/2 – UNI EN 10219/2).
Each taper is welded to the next using a certified process, which includes the following steps:
- Insertion of steel reinforcements into the larger diameter of the taper;
- Welding the reinforcements at multiple points;
- Inserting and welding the second taper into the first;
- A cap made from galvanized steel sheet is welded to the bottom taper section.
At the base of the pole, there is a 50x150 mm slot for routing cables to the junction box, created using a plasma cutting process, along with a grounding screw.
The first section of the pole features an additional 186x45 mm slot, also plasma-cut, which houses a 4-pole/3-way terminal block (wire cross-section 1.5÷16 mm²) and a locking inspection door.
The base of the pole is also fitted with a protective heat-shrink sheath.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
