ttica LED con tecnologia led E-light 12w - 1588lm - 3k - ottica rotosimmetrica.
Surface protection
Assembly instructions
Screw protection
SCREWS AND BOLTS
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
Optics composed of high-efficiency chips with various wiring and photometric distributions.
Surge protection against atmospheric discharges up to 10 kV in common mode.
Power supply driver with dimming and control capabilities.
The plate is generally made of an aluminum support designed to fit the structure it needs to adapt to.

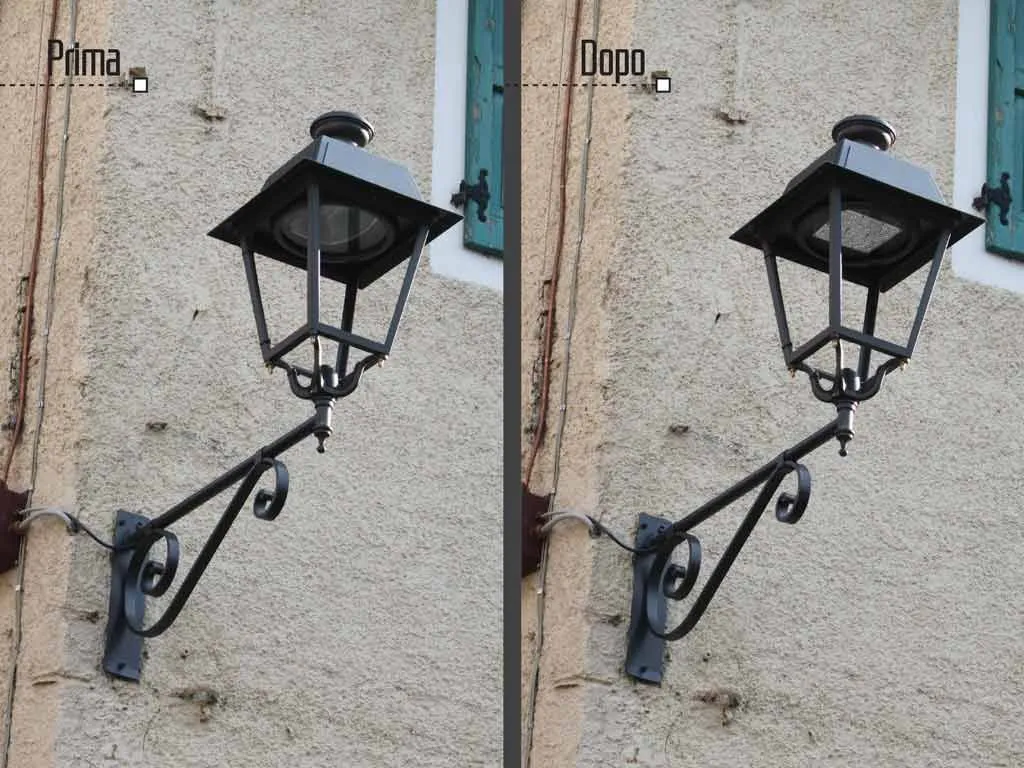

The kit fits perfectly into the existing fixture, preserving the historical and cultural value of the lantern. At the same time, it allows you to leverage the benefits of modern technology and enjoy the resulting energy savings.
The kit's application requires no structural modifications to the lamp and can be carried out easily and quickly.
The Retrofit unit is mounted on the plate.
The retrofit guarantees exceptional performance thanks to the use of premium components.
Optics:
Consists of a single aluminum block that ensures dissipation of the heat emitted by the LED diode.
Optics based on IP67 rated, UV-resistant, and IK10 impact-resistant molded lenses, with high-precision collimators for concentrating the light beam.
The circuit is coated with a special insulating powder that increases protection against electrostatic discharges.
IP67 optics with a watertight gasket are mounted on the heat sink structure to protect the LED circuits.
The entire LED engine is secured to the lower body of the lamp with six M4 stainless steel screws.
This design allows the LED engine to be easily removed for any maintenance operations.
Next to the LED engine, a support for the IP66 CL II or CL I driver is mounted, also fixed to the structure with stainless steel screws, making the entire assembly easily removable and separate from the LED engine.
All electrical connections are placed around the lower structure, well-insulated, including two plugs: one to disconnect the LED engine from the driver, and one to disconnect the driver from the mains.
For each specific need, the type of LED wiring and its light distribution is calculated based on the street and specific requirements.
Decay curves, photometric curves, and all technical parameters necessary for design are available for the specific Retrofit.
The support for the LED engine is designed and built on a case-by-case basis, depending on the fixture it will be mounted on and the needs of the designer and the end client.
Support painted black or any other RAL color upon request.
Specifications
| control | No |
| CRI | 70 |
| K | 3000 |
| lumen | 1588 |
| Optics | AR |
| light source | LED |
| lifespan h. | 90000 |
| watt | 12 |
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
