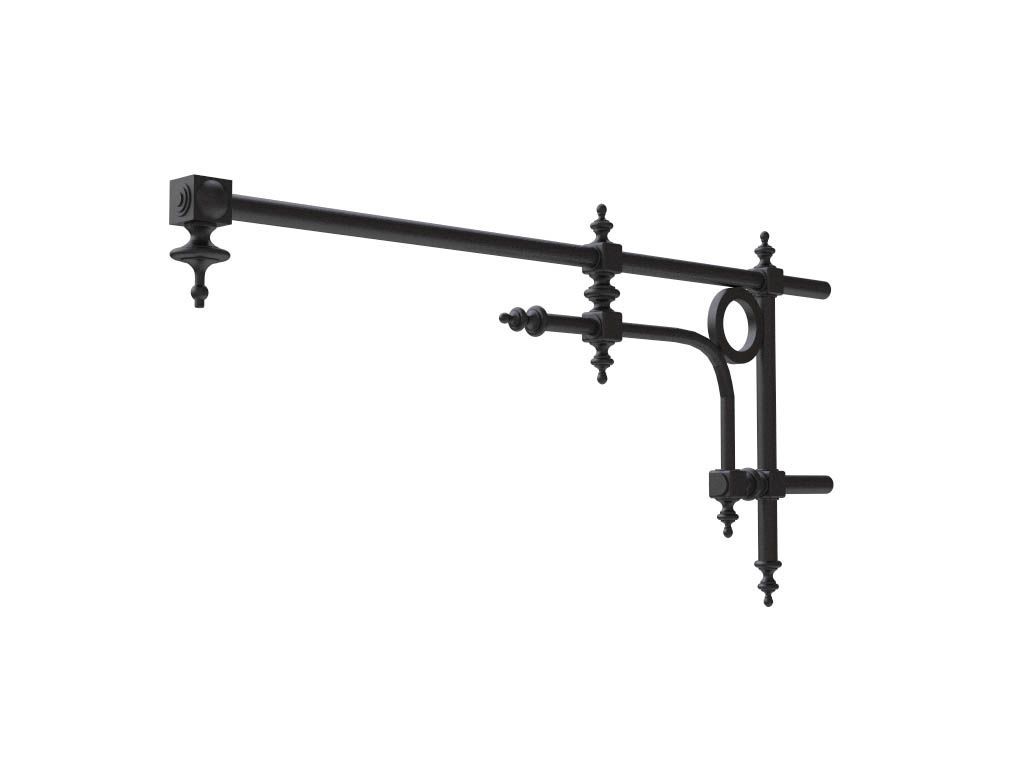

UN EN 1561 GJL250 Cast iron, UNI EN 1706 aluminum and FE 360 UNI EN 10219-1/FE 360 UNI EN 10219-2 steel wall bracket :

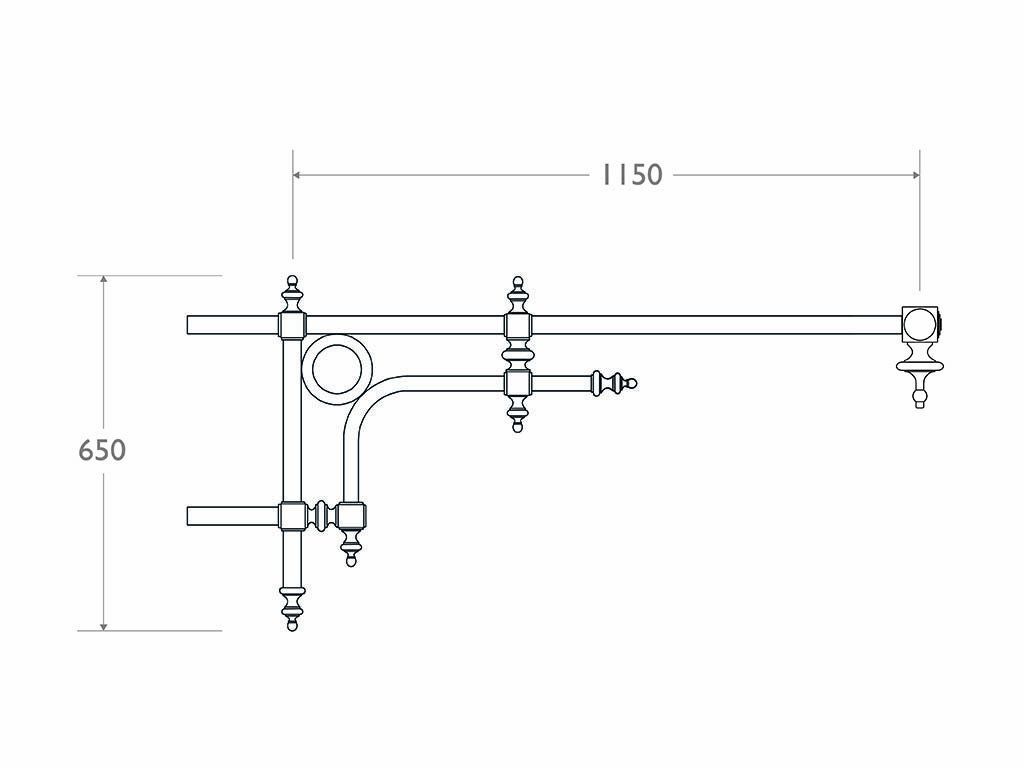

Total height of the bracket 650 mm, length 1150 mm.
The bracket consists in two linear steel elements, fixed to wall with fishers screws (20 cm deep).
The support junctions along the bracket are each made individually in a single casting of nodular cast iron; the final junction is threaded 3/4" GAS for attaching the light fixture and prearranged for the passage of cables.
Standard color is dark gray ( Texturized antracite ) , type EUROCOMITALIA or any other RAL colore requested.
Protection of surfaces: See specifications on the protection of materials.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
