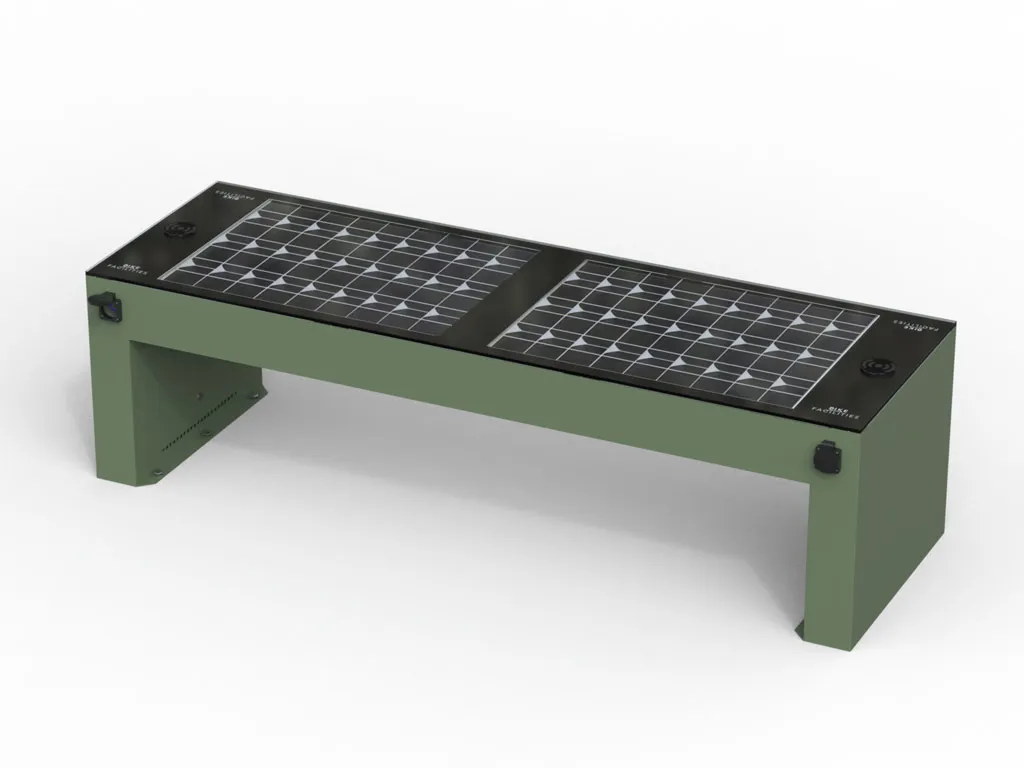

Smart bench - intelligent city furniture without backrest:
General technical features: 2 side supports made of sheet metal, printed in rectangular shape; Seat made from a single 10 mm thick polycarbonate sheet housed on a steel box containing suitable perpendicular supports; SMART charging module equipped with MPPT technology with PERC photovoltaic panel and batteries embedded in the bench's structure.
Version features: Equipped with 4 USB ports for charging devices up to 2 A; 2 schuko type 220V sockets with child protection; 2 wireless chargers incorporated into the structure, power 20W, QI technology; Cold white LED backlighting system; Includes local management and control system via WIFI connection or CLOUD via VIVAPORTAL with 12 months support; Temperature, humidity, charge and discharge sensors for devices, weather sensors with automatic standby system in case of prolonged absence of sunlight; Automatic error prediction and self-management system with automatic reports; Preparation for bike rack attachment on the side legs.
Fixing and maintenance: The rectangular feet are prepared for anchoring using M10 steel bolts. The surfaces are properly protected through a 5P cycle and powder-coated. Registered design, registered smart technology.
ZERO WIRE SYSTEM meaning no wiring is required. Just place it in a sunny location and the solar panel-powered bench will provide all services (both USB and WIRELESS charging and internet connection). The new VIVA™ bench is designed to modernize today’s cities with innovative technologies for controlling and enjoying specific functionalities, aimed at meeting the modern needs of citizens. New cities are characterized by innovation and targeted services; thanks to its countless technological functions, the bench becomes not just a place of relaxation but also a gathering spot, where a new way of thinking about the city can be conceived. We can charge our smart devices thanks to the front USB ports, connect to Wi-Fi, and get real-time information on traffic, CO2 emissions, weather conditions, etc. Communicating has never been so easy!
Ample customization space for the customer. The cross-disciplinary skills of our team, along with knowledge of materials and processing technologies, allow us to tackle any custom project. Through cloud connection, the VIVA PORTAL software remotely manages the network of stations on any device, at any time. Control and verification of the system from a single station. Manage all your stations in real-time simply and efficiently, even in multi-user scenarios. Monitor your network of stations and check the monitoring information sent. Battery charge monitoring; weather information; environmental information; device charging and discharging; error prediction and reporting.
Module features: The magic happens thanks to the modules, the beating heart of the system, which allow you to customize the product according to your needs.
Unique technical features of the version: Total Control: Access via WIFI to the interface for real-time data visualization and control. InfoSensor: Environmental information from sensors such as temperature and humidity, device charge and discharge, energy production, instantaneous and long-term consumption, self-check with error prediction and reporting. VivaDirect: Direct access to information and control via WIFI near the station. VivaPortal: Cloud-based remote management and control portal. Photovoltaic module: Monocrystalline 120W power. Batteries: AGM type / Capacity: up to 0.72 kWh. USB charging: 2 ports 5W and 2.2W. Charging sockets: 2 schuko 220V sockets. Wireless charging: 20W power / Efficiency over 80%. Cooling system: Air flow 170 m³/h, Temperature trigger: 38°C. LED light: backlit panel and dimmable cool white LED light.
Optional: Art. 391381 Air Pollution sensor. Art. 391383 GPS position sensor. Art. 391384 RGBW dimmable LEDs with selectable scenarios via the system. Art. 391386 Paints in requested RAL colors. Art. 391387 Module for installation without anchoring. Art. 391388 UVC antibacterial LED, also used to combat COVID-19 infection. Art. 391395 Bike or scooter rack module for two places. Art. 391397 HOTSPOT module including modem for connection via WIFI network. Art. 391398 Vandal-proof presence sensor. Art. 391399 Custom printing on the smart module. Art. 391400 Environmental noise sensor. Art. 391401 Heating of the seat.
| Power supply | Fotovoltaico |
| seat | 47 cm |
| length | 1,75 mt |
| Material | Acciaio e alluminio |
| Mounting | Tasselli |
| assembled | Si |
| Accessories | USB, LED, IoT |
| Color | Verde e nero |
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
