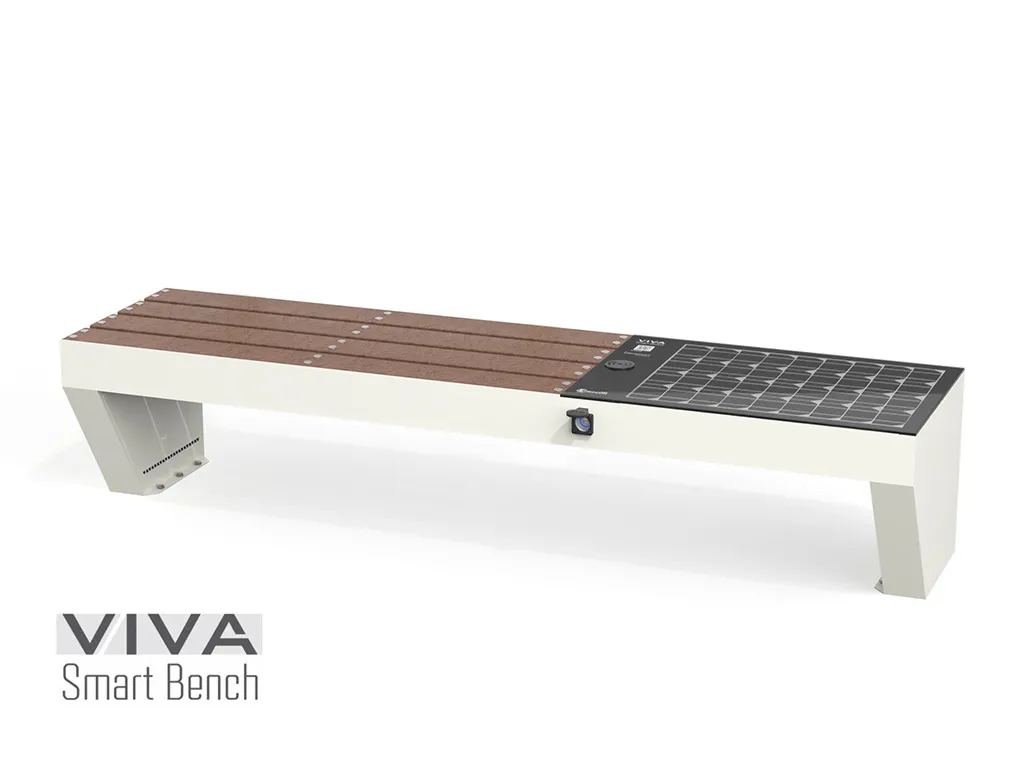

VIVA SMART Solar-Powered Smart Bench, IoT Ready, 2.1m Backless Recycled Plastic Seat, WIRELESS & USB Charging, LED Lighting

VIVA Backless Smart Bench, White, Solar-Powered with Smart Charging, IoT Ready, 2.2m Recycled Plastic Seat, WIRELESS & USB Charging, LED Lighting

Name: VIVA Backless Smart Bench, White, Solar-Powered with Smart Charging, IoT Ready, 2.2m Recycled Plastic Seat, WIRELESS & USB Charging, LED Lighting
Brand: EurocomItalia S.r.l.
SKU: 311315
Availability: InStock

code 311315

color

category: Benches, Smart city products, Smart city benches, Smart Benches

select color

description

Smart bench for urban furniture - VIVA SMART backless model.General Technical Features:
N° 2 trapezoidal-shaped moulded side supports;
Seat made from STRONGPLAST (recycled plastic) profiles, 120 x 40 mm section, bolted to the seat supports;
SMART charging module equipped with MPPT PERC technology with a photovoltaic panel and batteries embedded in the bench structure;
Neutral white LED lighting.Version Features:
Equipped with 2 USB ports for charging devices up to 2 A and a built-in 20W QI wireless charger;
Neutral white LED backlighting system;
Includes local management and control system via WIFI connection or in the CLOUD via VIVAPORTAL with 12 months of support;
Sensors for temperature, humidity, device charge and discharge, weather sensors with an automatic standby system in case of prolonged absence of solar radiation;
Automatic error prediction and self-management system with automatic reports.Fixing and Maintenance:
The trapezoidal feet are designed for anchoring with M10 steel bolts. The smart module is removable and can be sent for maintenance without needing to remove the entire bench. The surfaces are duly protected by a 5P cycle and are powder-coated. Unique Technical Features of this Version:
Total Control: Access the interface via WIFI for real-time data viewing and control.
InfoSensor: Environmental information from sensors such as temperature and humidity, device charge and discharge, energy production, instantaneous and long-term consumption, self-check with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI when near the station.
VivaPortal: Cloud-based remote management and control portal.
Photovoltaic Module: Monocrystalline 60W power.
Batteries: AGM type / Capacity: up to 0.72 kWh.
USB Charging: 2 ports 5W and 2.2W.
Wireless Charging: 10W Power / Efficiency over 80%.
Cooling System: Air flow 170 m³/h, Temperature trigger: 38°C.
LED Light: Backlit panel and dimmable neutral white LED light.

The VIVA SMART system is based on ZERO WIRE SYSTEM technology: no wiring required.
Simply place the product in an area exposed to sunlight, and the integrated photovoltaic panel will ensure self-sufficiency for all available services, including device charging via USB ports and wireless technology.

The VIVA™ series products were created with the aim of modernizing urban spaces through innovative technologies, geared towards the control and use of specific functionalities to meet the needs of contemporary citizens.
The VIVA™ series redefines the very concept of public space, transforming it not only into a place for rest and relaxation, but into a hub for gathering and interaction.

Depending on the model, the system allows you to:
- charge smart devices (tablets, smartphones) via USB ports
- charge compatible devices via integrated wireless technology
- connect to the Wi-Fi network
- consult real-time information on traffic, air quality, weather conditions, and much more

The VIVA™ series offers extensive customization possibilities.
The cross-functional skills of our team and our deep knowledge of materials and processing technologies allow us to tackle any custom project.

Through a cloud connection, the VIVA PORTAL software allows for centralized remote management of the entire network of stations, on any device and at any time.
A single platform to control and check the system status in real time, in a simple, efficient, and multi-user way:
- monitoring of battery charge status
- collection of weather and environmental data
- monitoring of device charge and discharge cycles
- predictive anomaly detection and error reporting system

GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.

GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.

SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.

downloads

disegno tecnico dwg

Disegno tecnico
