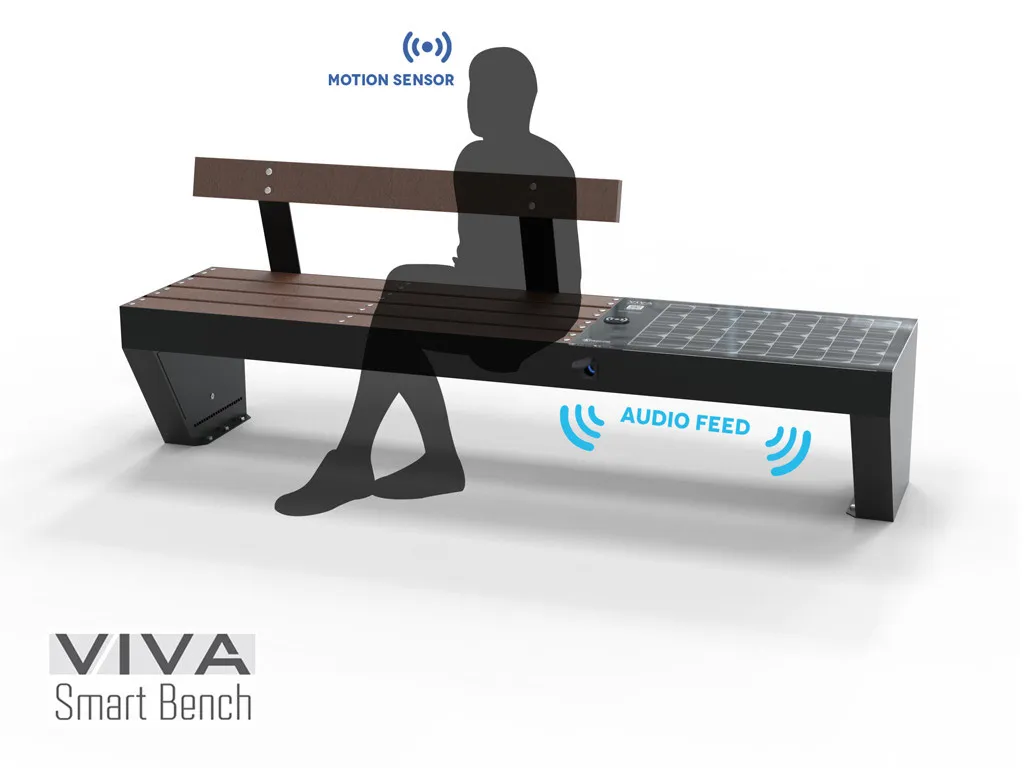

Smart bench for urban furniture, VIVA AUDIO model, equipped with an AIS system for audio interaction with users, composed of:General Technical Features:
N° 2 trapezoidal side supports made of 30/10 thickness sheet metal;
Seat and backrest made with STRONGPLAST (recycled plastic) profiles, 120 x 40 mm section, bolted to the seat and backrest supports;
SMART charging module equipped with MPPT technology, a monocrystalline photovoltaic panel with PERC technology, and batteries embedded within the bench's structure;
AIS audio module.Version Features:
The Audio Interaction System (AIS) is a patented system that allows users to interact with the system's audio content; unique features include the ability to play content of interest based on the presence of users around or seated on the bench (e.g., tourist guides). Furthermore, the system can automatically play relaxing ambient sounds based on weather conditions and user presence.
Amplified audio system;
Equipped with N° 2 USB ports for charging devices up to 2 A and a wireless charger built into the structure;
Neutral white LED backlighting system;
Includes local management and control system via WIFI connection or in the CLOUD via VIVAPORTAL with 12 months of assistance;
Sensors for temperature, humidity, device charging and discharging, and weather, with an automatic stand-by system in case of prolonged lack of solar radiation;
Automatic error prediction and self-management system with automatic reports;
Additional power supply via a high-efficiency charger managed by an energy-saving system modulated according to the solar panel's efficiency;
IP65 system protection rating.Fixing and Maintenance:
The trapezoidal feet are designed for anchoring with M10 steel bolts. The smart module is removable and can be sent for maintenance without needing to remove the entire bench. The surfaces are duly protected by a 5P cycle and are powder-coated.Unique Technical Features of this Version:
Total Control: WIFI access to the interface for real-time data visualization and control.
InfoSensor: Environmental information from sensors such as temperature and humidity, device charge and discharge status, energy production, instantaneous and long-term consumption, and self-check with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI when near the station.
VivaPortal: Cloud-based remote management and control portal.
Photovoltaic Module: Monocrystalline 60W power.
Batteries: AGM type / Capacity: up to 0.72 kWh.
USB Charging: 2 ports, 5W and 2.2W.
Wireless Charging: 10W power / Efficiency over 80%.
Cooling System: Air flow 170 m³/h, Temperature trigger: 38°C.
LED Light: Backlit panel and dimmable neutral white LED light.
Transformer for backup charging: 230V AC.
AIS: Audio interaction system with users.
| Accessories | USB, LED, IOT, AUDIO |
| Power supply | Fotovoltaico e Rete |
| backrest height | 80 cm |
| seat height | 45 cm |
| Color | Black |
| Modemo per HOTSPOT | Si |
| Material | Acciaio e Strongplast |
| Mounting | Bolt anchor |
| assembled | Si |
| length | 2,2 mt |
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
