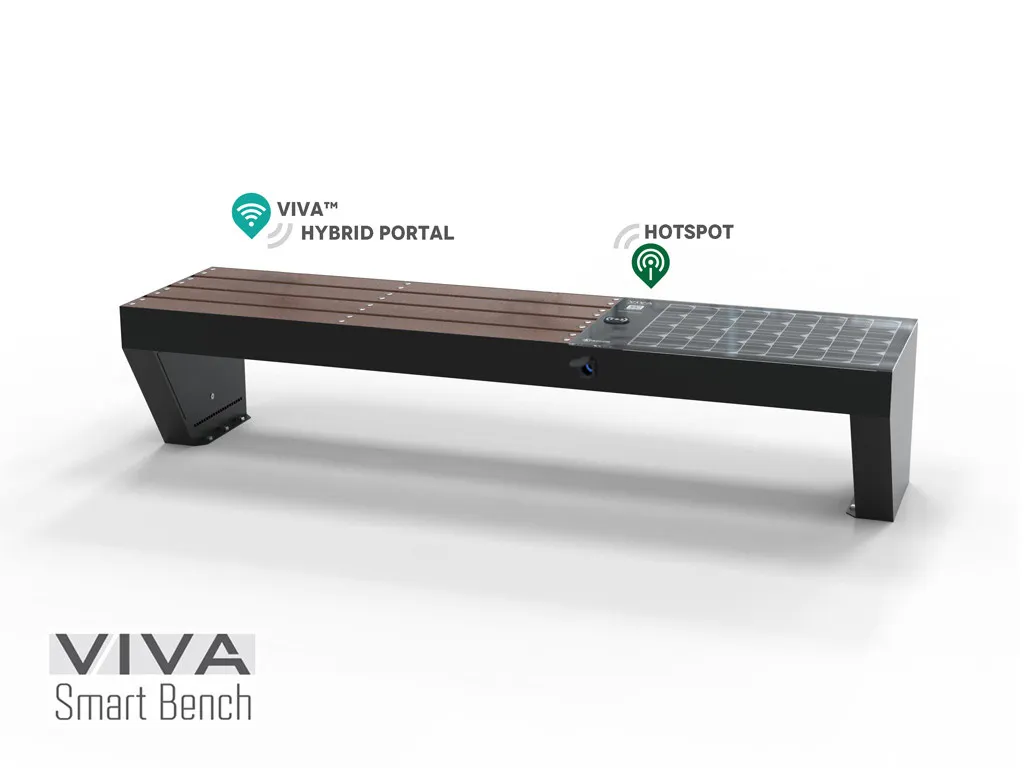

Smart bench for urban furniture, VIVA SMART model, backless.
General technical specifications:
2 trapezoidal side supports;
Seat made of STRONGPLAST (recycled plastic) profiles, 120 x 40 mm section, internally milled and reinforced with a 15 x 15 mm steel profile. The profiles are bolted onto the seat supports;
SMART charging module equipped with MPPT PERC technology, with a photovoltaic panel and batteries embedded in the bench structure;
Neutral white LED lighting.
Version features:
Equipped with 2 USB ports for charging devices up to 2A and a 20W QI wireless charger built into the structure;
Neutral white LED backlighting system;
Includes local management and control system via WIFI connection or in the CLOUD via VIVAPORTAL with 12 months of support;
Sensors for temperature, humidity, device charging and discharging, and weather sensors with an automatic standby system in case of prolonged lack of solar radiation;
Automatic error prediction and self-management system with automatic reports;
Internet connection via 4G LTE network (data card not provided), LAN, or WIFI REPEATER;Customization of the HOTSPOT access point with social media integration and the option for paid advertising placements;Integration with a GDPR-compliant HOTSPOT PORTAL for customizing user privileges and pages, and system management (at cost);Additional power supply via a high-efficiency Tempering charger managed by an energy-saving system modulated according to the solar panel's efficiency.
Fixing and maintenance:
The trapezoidal feet are designed for anchoring with M10 steel bolts.
The smart module is removable and can be sent for maintenance without needing to remove the entire bench.
The surfaces are duly protected by a 5P cycle and are powder-coated.
Unique technical features of this version:
Total Control: WIFI access to an interface for real-time data visualization and control.
InfoSensor: Environmental information from sensors such as temperature and humidity, device charge and discharge status, energy production, current and historical consumption, and self-check with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI when near the station.
VivaPortal: Cloud-based remote management and control portal.
Photovoltaic module: Monocrystalline 60W power.
Batteries: AGM type / Capacity: up to 0.72 kWh.
USB charging: 2 ports, 5W and 2.2W.
Wireless charging: 10W power / Over 80% efficiency.
Cooling system: Airflow: 170 m³/h, Temperature trigger: 38°C.
LED light: Backlit panel and dimmable neutral white LED light.
The VIVA SMART system is based on ZERO WIRE SYSTEM technology: no wiring required.
Simply place the product in an area exposed to sunlight, and the integrated photovoltaic panel will ensure self-sufficiency for all available services, including device charging via USB ports and wireless technology.
The VIVA™ series products were created with the aim of modernizing urban spaces through innovative technologies, geared towards the control and use of specific functionalities to meet the needs of contemporary citizens.
The VIVA™ series redefines the very concept of public space, transforming it not only into a place for rest and relaxation, but into a hub for gathering and interaction.
Depending on the model, the system allows you to:
- charge smart devices (tablets, smartphones) via USB ports
- charge compatible devices via integrated wireless technology
- connect to the Wi-Fi network
- consult real-time information on traffic, air quality, weather conditions, and much more
The VIVA™ series offers extensive customization possibilities.
The cross-functional skills of our team and our deep knowledge of materials and processing technologies allow us to tackle any custom project.
Through a cloud connection, the VIVA PORTAL software allows for centralized remote management of the entire network of stations, on any device and at any time.
A single platform to control and check the system status in real time, in a simple, efficient, and multi-user way:
- monitoring of battery charge status
- collection of weather and environmental data
- monitoring of device charge and discharge cycles
- predictive anomaly detection and error reporting system
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
