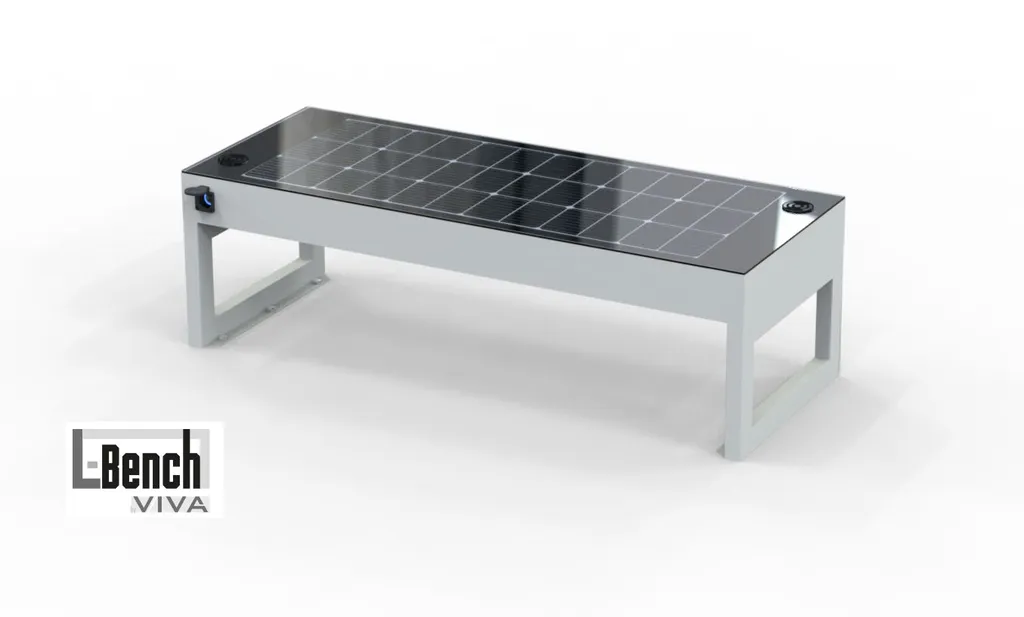

L-Bench Solar-Powered Device Charging Station, 1.5m Seat, with WIRELESS & USB Charging, White
General Technical Features:
N° 2 shaped side supports made from 60 x 40 mm tubular steel;
Seat crafted from a single 4 mm thick polycarbonate sheet, housed within a steel box containing dedicated perpendicular supports;
SMART charging module featuring MPPT technology with a photovoltaic panel and batteries integrated into the bench's structure;
Version Features:
Equipped with 4 USB ports for charging devices up to 2A and 2 built-in wireless chargers with QI technology up to 20W. The bench is supplied as a mounting kit (smart box + 2 legs).
Installation and Maintenance:
The legs are designed for anchoring with M10 steel bolts.
The surfaces are duly protected with a 5P treatment cycle and powder-coated (See specifications on material protection.).
The surfaces are duly protected with a 5P treatment cycle and powder-coated (See specifications on material protection.).
Registered design, registered smart technology.
ZERO WIRE SYSTEM, meaning no wiring of any kind is required.
ZERO WIRE SYSTEM, meaning no wiring of any kind is required.
Simply place it in a sunny location, and the solar-powered bench will provide all its services (both USB and WIRELESS charging).
The new L-Bench™ was created to modernize today's cities with innovative technologies for controlling and utilizing specific functionalities, aimed at satisfying the modern needs of citizens.
The new smart cities are defined by innovation and targeted services. Thanks to its countless technological functions, it becomes a place not only for relaxation but also for social gathering, where a new way of thinking about the city can be conceived.
We can charge our smart devices thanks to the front USB ports and wirelessly.
UNIQUE TECHNICAL FEATURES OF THIS VERSION:
Photovoltaic Module: 100W Monocrystalline.
Batteries: AGM Type / Capacity: up to 0.72 kWh.
USB Charging: 2 x 5W ports and 2 x 2.2W ports.
Wireless Charging: 20W QI Power / Over 80% efficiency.
Optional Extras:
Art. 391386 Custom RAL color painting upon request.
Art. 391388 Antibacterial UVC LED, also used to combat COVID-19 infection.
Art. 391399 Custom printing on the Smart module.
Included addons
391375 Neutral White 4K LED System for VIVA SMART Products
391382 Standard USB: Dual USB-A QC3.0 20W Smart Device Charger
391392 20W QI Wireless Charger for VIVA SMART Benches
Optional addons
391377 RGBW LED System for VIVA SMART Products
391380 VIVA BOARD CONTROL - VIVA SMART Control Board
391391 Mains Backup Module for VIVA SMART Series Benches
391397 HOTSPOT Module with included Wi-Fi Modem for network connection
391402 20W USB-C Charger: 1x USB-C + Dual USB-A QC3.0 for Smart Devices
391405 Audio Interaction System (AIS) with Keypad
391406 Bluetooth Audio System with Amplified Speaker for Public Spaces
391427 Recycled plastic bench for L-BENCH
Specifications
| Accessories | USB, Wireless Charger |
| Power supply | Fotovoltaico |
| height | 44 cm |
| Material | Acciaio + Policarbonato |
| Mounting | Tasselli |
| assembled | No |
| length | 1,5 mt |
| Color | Bianco |
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
