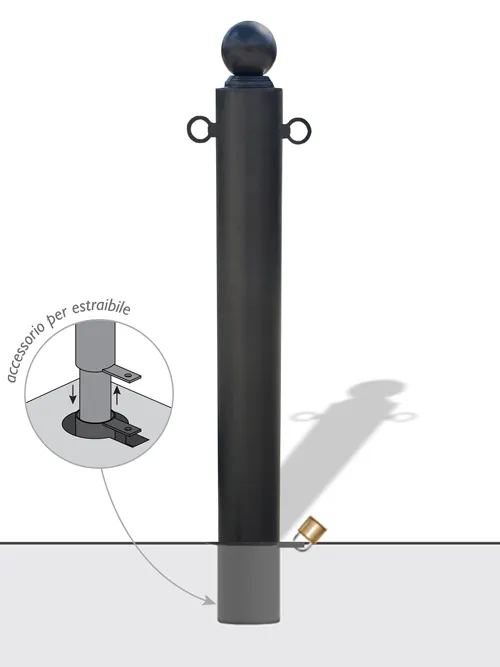

An artistic, column-style street bollard, Trento model with eyelets and a removable feature, crafted from weldable cast iron.
Components:
Body consisting of a circular, bush-hammered cast iron shaft;
A smooth circular ornament topped by a sphere, welded to the main body
Eyelets for chain connection
Mounting flange for bolt-down installation
Shaft diameter: 100 mm.
Overall height: 1000 mm.
This product complies with Article 180, paragraphs 3, 4, 5 and the directives of the Ministry of Public Works.
Specifications
| above ground height | 100 cm |
| In concrete | 20 cm |
| Material | Ghisa |
| chain eyelets | Si |
| removable | Si |
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
