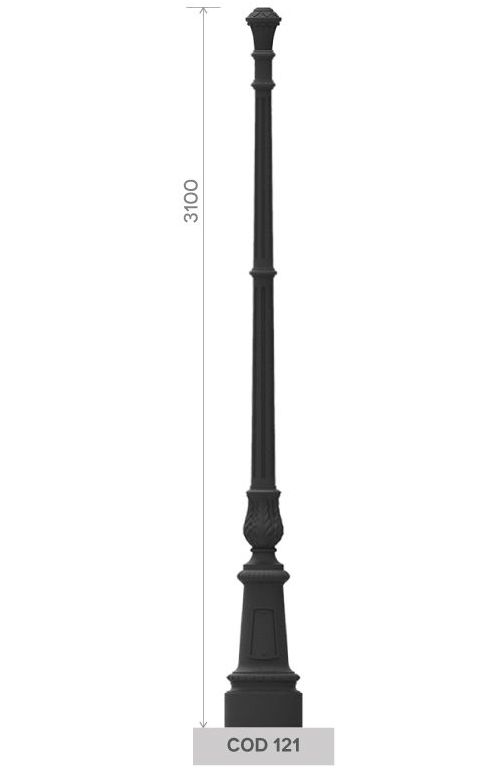

Artistic UNI EN 1561 GJL250 cast iron pole with round base and cicular cross-section body components, height 3255 mm,
Painted black anthracite or any other color RAL apon request ( see special coating ); sizes, shapes and moldings according to project specifications.
Equipped with pole top termianl COD TP1 fixed to internal steel tube by bolts and ready for the fitting of a lantern on a threaded 3 / 4 GAS tube also used to fix the UNI EN 1561 GJL250 cast iron components.
Equipped with M10 screws for grounding and a 55 mm diameter hole for the passage of electric cable inside.
The pole also has a slot for housing the terminal block and a UNI EN 1561 GJL250 cast iron closing door.
The elements that make up the pole are all in cast iron.
Surface Protection: See details on the protection of materials. .
Items included: UNI 5745 galvanized internal FE 510 UNI 7810 steel core.
Assemblage: See installation specifications.
Cast iron pole equipment
STANDARD EQUIPMENT:
Internal steel core with slot for terminal block mounting.
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
