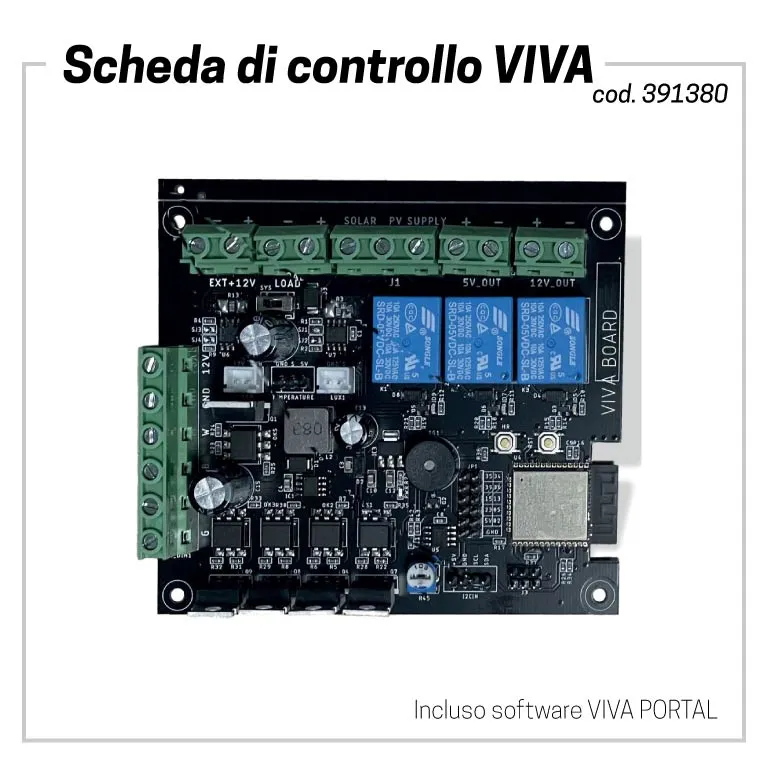

The VIVA BOARD control board was created to modernize today's cities with innovative technologies for controlling and using specific functionalities, aimed at meeting the modern needs of citizens.
The new smart cities are defined by innovation and targeted services. Thanks to its countless technological functions, the city becomes a place not only for relaxation but also for community, where a new way of thinking about urban life can be conceived.
You can charge your smart devices thanks to the front USB ports, connect to Wi-Fi, and get real-time information on traffic, CO2 emissions, weather conditions, and more. Communicating has never been easier!
Ample room for customer customization.
Our team's diverse skills, knowledge of materials, and processing technologies allow us to tackle any custom project.
Through a cloud connection, the VIVA PORTAL software manages the network of stations remotely on any device, at any time.
System control and verification from a single station.
Manage all your stations in real-time simply and efficiently, even with multi-user access.
Control your network of stations and verify the monitoring information sent.
Monitor battery charge, weather info, environmental info, device charging/discharging, and error prediction and reporting.
Module Features:
The magic happens thanks to the modules, the beating heart of the system. They allow you to customize the product according to your needs.
FEATURES:
Wi-Fi & Bluetooth Dual Mode
High Integration in-built antenna
240MHz clock 8 MB flash
LED PWM, Motor PWM 5 ch
EXPANSION VIA UART, SPI, SDIO, I2C
10 DIRECT GPIO AVAILABLE
Wide voltage input 7 to 24v
Industrial temperature range
Size 70x70 mm
UMTS with SIM (optional)
Capacitive touch sensor
1x 5V relay; 1x 12V relay
1x NO/NC relay
IN and OUT current sensor
BUZZER and TRIMMER for 1x IO
1x Reset; 1x HW Reset; 1x 12V clean output
VIVA Products - Description
The VIVA SMART system is based on ZERO WIRE SYSTEM technology: no wiring required.
Simply place the product in an area exposed to sunlight, and the integrated photovoltaic panel will ensure self-sufficiency for all available services, including device charging via USB ports and wireless technology.
The VIVA™ series products were created with the aim of modernizing urban spaces through innovative technologies, geared towards the control and use of specific functionalities to meet the needs of contemporary citizens.
The VIVA™ series redefines the very concept of public space, transforming it not only into a place for rest and relaxation, but into a hub for gathering and interaction.
Depending on the model, the system allows you to:
- charge smart devices (tablets, smartphones) via USB ports
- charge compatible devices via integrated wireless technology
- connect to the Wi-Fi network
- consult real-time information on traffic, air quality, weather conditions, and much more
The VIVA™ series offers extensive customization possibilities.
The cross-functional skills of our team and our deep knowledge of materials and processing technologies allow us to tackle any custom project.
Through a cloud connection, the VIVA PORTAL software allows for centralized remote management of the entire network of stations, on any device and at any time.
A single platform to control and check the system status in real time, in a simple, efficient, and multi-user way:
- monitoring of battery charge status
- collection of weather and environmental data
- monitoring of device charge and discharge cycles
- predictive anomaly detection and error reporting system
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
