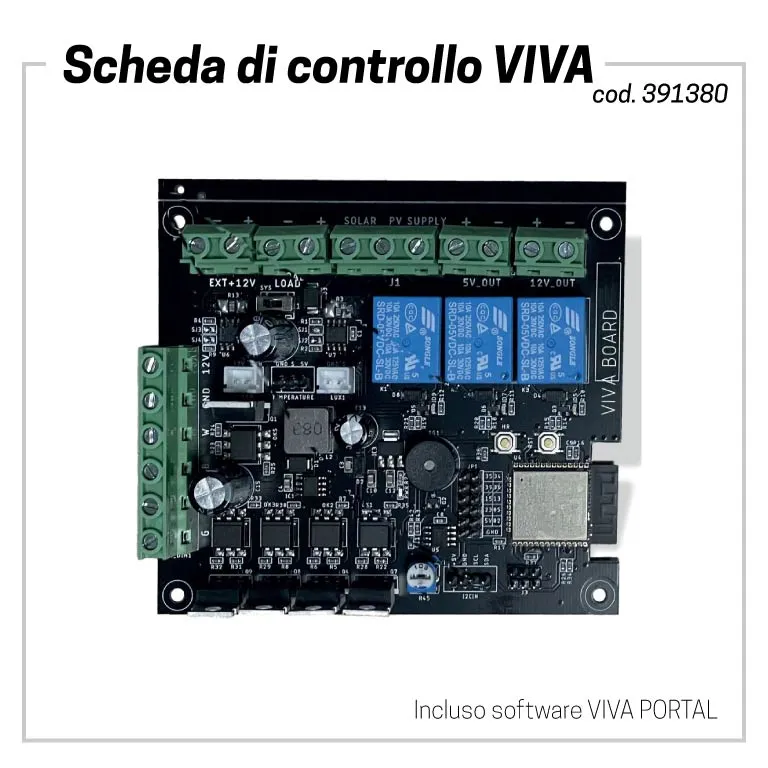

The VIVA BOARD control board was created to modernize today's cities with innovative technologies for controlling and using specific functionalities, aimed at meeting the modern needs of citizens.
The new smart cities are defined by innovation and targeted services. Thanks to its countless technological functions, the city becomes a place not only for relaxation but also for community, where a new way of thinking about urban life can be conceived.
You can charge your smart devices thanks to the front USB ports, connect to Wi-Fi, and get real-time information on traffic, CO2 emissions, weather conditions, and more. Communicating has never been easier!
Ample room for customer customization.
Our team's diverse skills, knowledge of materials, and processing technologies allow us to tackle any custom project.
Through a cloud connection, the VIVA PORTAL software manages the network of stations remotely on any device, at any time.
System control and verification from a single station.
Manage all your stations in real-time simply and efficiently, even with multi-user access.
Control your network of stations and verify the monitoring information sent.
Monitor battery charge, weather info, environmental info, device charging/discharging, and error prediction and reporting.
Module Features:
The magic happens thanks to the modules, the beating heart of the system. They allow you to customize the product according to your needs.
FEATURES:
Wi-Fi & Bluetooth Dual Mode
High Integration in-built antenna
240MHz clock 8 MB flash
LED PWM, Motor PWM 5 ch
EXPANSION VIA UART, SPI, SDIO, I2C
10 DIRECT GPIO AVAILABLE
Wide voltage input 7 to 24v
Industrial temperature range
Size 70x70 mm
UMTS with SIM (optional)
Capacitive touch sensor
1x 5V relay; 1x 12V relay
1x NO/NC relay
IN and OUT current sensor
BUZZER and TRIMMER for 1x IO
1x Reset; 1x HW Reset; 1x 12V clean output
