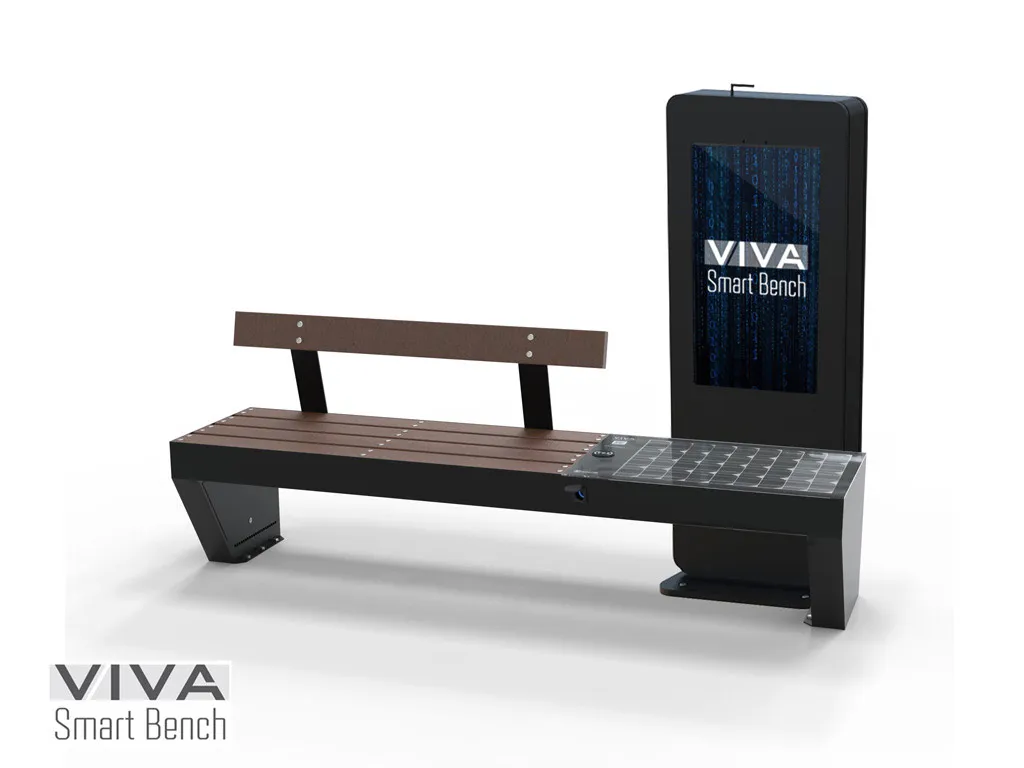

Smart bench for urban furnishing, VIVA SIGNAGE model, with a high-brightness advertising totem and internet access.
General Technical Features:
N° 2 trapezoidal side supports made of 30/10 gauge sheet metal;
Seat and backrest made with 120 x 40 mm STRONGPLAST profiles (recycled plastic), bolted onto the seat and backrest supports;
SMART charging module featuring MPPT technology with a monocrystalline photovoltaic panel with PERC technology and batteries embedded in the bench structure;
Outdoor-rated digital signage totem made entirely of aluminum with an inspection door, equipped with a 46-inch vertical monitor.
Version Features:
Equipped with N° 2 USB ports for charging devices up to 2 A and a wireless charger built into the structure;
Neutral white LED backlighting system;
Includes local management and control system via WIFI connection or in the CLOUD via VIVAPORTAL with 12 months of support;
Sensors for temperature, humidity, device charging and discharging, and weather, with an automatic stand-by system in case of prolonged lack of solar radiation;
Self-management and error prediction system with automatic reports;
Internet connection via 4G LTE network using a data card (not supplied), or via LAN or WIFI REPEATER;
Customizable HOTSPOT access point with social media integration and options for paid advertising;
Integration with a GDPR-compliant HOTSPOT PORTAL, with customization of user privileges and pages, and paid system management;
Additional power supply via a high-efficiency charger managed by an energy-saving system modulated according to solar panel efficiency;
Totem powered by 230V AC mains;
Multimedia advertising totem managed entirely on the VIS cloud platform.
Fixing and Maintenance:
The trapezoidal feet are designed for anchoring with M10 steel bolts.
The SMART module is removable and can be sent for maintenance without needing to remove the entire bench.
The surfaces are duly protected by a 5P cycle and are powder-coated.
Unique Technical Features of this Version:
Total Control: Access the interface via WIFI for real-time data visualization and control.
InfoSensor: Environmental information from sensors such as temperature and humidity, device charge and discharge, energy production, instantaneous and long-term consumption, and self-check with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI when near the station.
VivaPortal: Cloud-based portal for remote management and control.
Photovoltaic Module: 60W power Monocrystalline.
Batteries: AGM type, capacity up to 0.72 kWh.
USB Charging: 2 ports, 5W and 2.2W.
Wireless Charging: 10W power / Over 80% efficiency.
Cooling System: Air flow 170 m³/h, Temperature trigger: 38°C.
LED Light: Backlit panel and dimmable neutral white LED light.
Internet Connection Technology: 4G LTE, speed up to 150 Mbps, or via LAN cable or WIFI REPEATER.
Backup Charging Transformer: 230V AC.
Totem Power Supply: from 230V AC mains.
| Color | Black |
| Accessories | Totem, USB , LED , IOT |
| Material | Acciaio, Alluminio e Strongplast |
| Mounting | Tasselli |
| assembled | si |
| Power supply | Fotovoltaico e Rete |
| internet hotspot | SI |
| backrest height | 80 cm |
| length | 2,2 mt |
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
