UNI EN 1561 GJL250 cast iron pole with small floral base h. 3000
code 165
Categoría: 160 flor ornamentada pequeña
Descripción
Descargas
Versión del producto

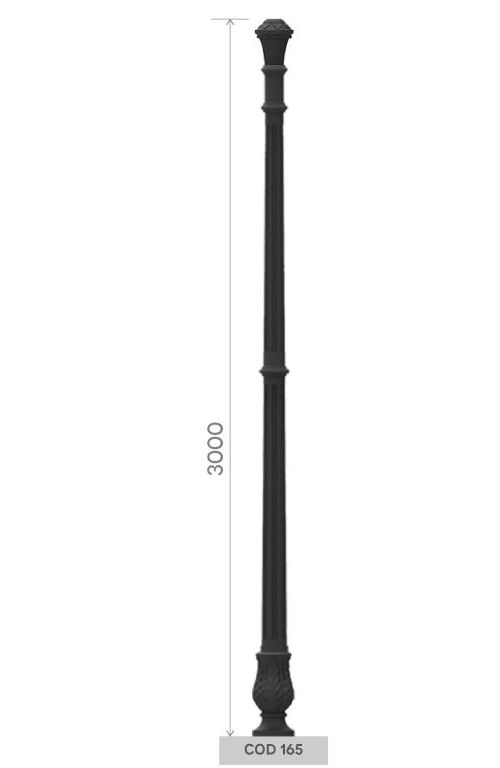

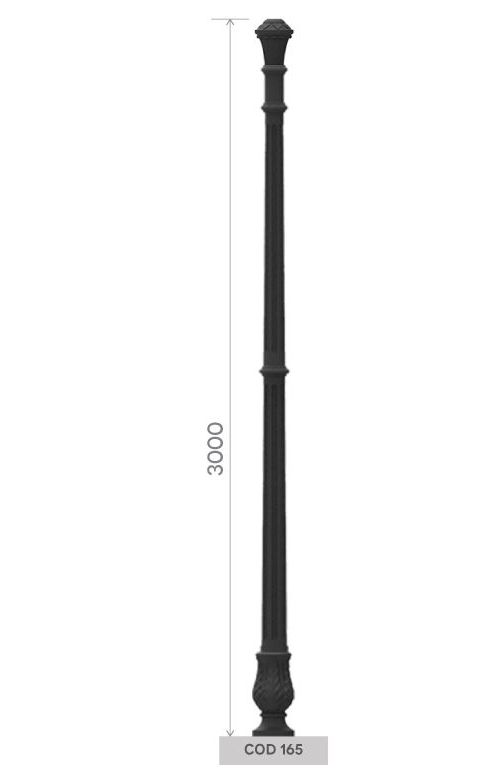

Artistic UNI EN 1561 GJL250 cast iron pole with small floral base and cicular cross-section body components, height 3000 mm,
Painted black anthracite or any other color RAL apon request ( see special coating ); sizes, shapes and moldings according to project specifications.
Equipped with pole top termianl COD TP1 fixed to internal steel tube by bolts and ready for the fitting of a lantern on a threaded 3 / 4 GAS tube also used to fix the UNI EN 1561 GJL250 cast iron components.
Equipped with M10 screws for grounding and a 55 mm diameter hole for the passage of electric cable inside.
The elements that make up the pole are all in cast iron.
Surface Protection: See details on the protection of materials. .
Items included: UNI 5745 galvanized internal FE 510 UNI 7810 steel core.
Assemblage: See installation specifications.
