Artistic Pole for H.F.T. Surveillance Camera 5 m

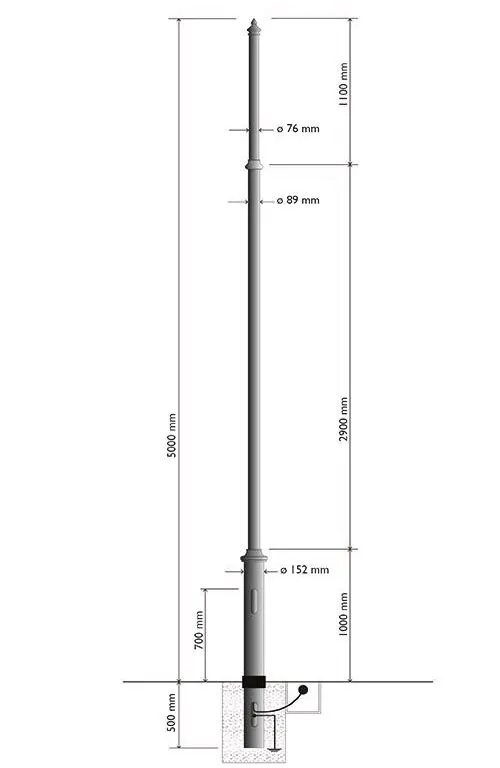

The shaft is made of circular section steel and consists of three sections:

the first section, with a diameter of 152 mm, is 1500 mm tall, of which 500 mm is embedded in the ground;

the second section is 2900 mm high and has a diameter of 89 mm; the last section is 1100 mm long with a diameter of 76 mm.



On the first section, at 700 mm, there is an inspection hatch designed for housing a terminal block inside.

The tapering is adorned with a collar made of cast iron or aluminum, fixed to the pole with screws.



The top of the pole, COD TP2, is made from a single cast of iron and is secured to the pole with stainless steel screws.



The pole is suitable for video surveillance in historic centers.



At the base of contact between the pole and ground level, there is a protective thermosetting sheath.



All elements made of cast iron or aluminum are created from a single casting.



PROTECTION OF SURFACES

The cast iron surfaces are appropriately sandblasted before the painting process.

one coat of zinc phosphate monocomponent primer, one finishing coat of highly protective bi-component catalyzed paint.

Standard color is antiqued black type EUROCOMITALIA.

Where requested, the possibility to apply paint according to the customer's RAL.



HARDWARE

Hardware and accessories made of stainless steel.



ASSEMBLY

See assembly specifications.
