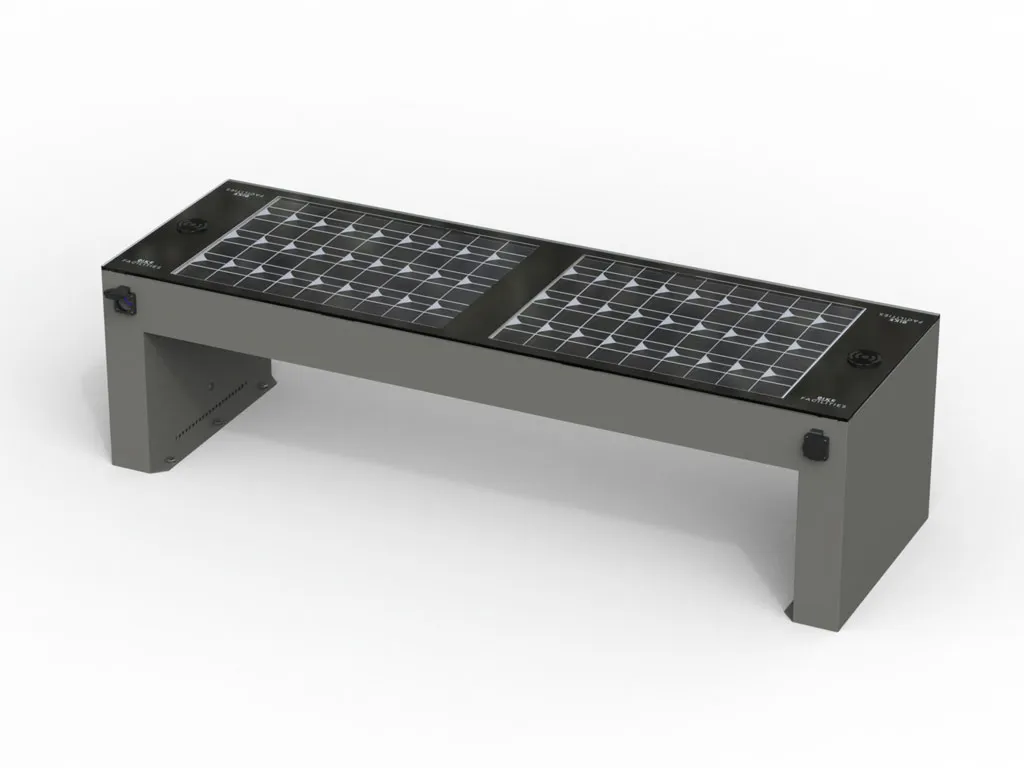

Smart bench - intelligent backless bench for urban furniture:
General technical features: 2 side supports made of sheet metal, shaped in a rectangular form; Seat made from a single 10 mm thick polycarbonate sheet housed on a steel box containing appropriate perpendicular supports; SMART charging module equipped with MPPT technology with PERC photovoltaic panel and batteries embedded in the structure of the bench.
Version features: Equipped with 4 USB ports for charging devices up to 2 A; 2 220V Schuko outlets with child protection; 2 wireless chargers integrated into the structure, power 20W, QI technology; Cold white LED backlighting system; Includes local management and control system via WIFI connection or CLOUD through VIVAPORTAL with 12 months support; Temperature, humidity, charge and discharge sensors for devices, weather sensors with automatic standby system in case of prolonged absence of solar irradiation; Automatic error prediction and self-management system with automatic reports; Provision for bike rack fixing on the side feet.
Fixing and maintenance: The rectangular feet are designed for anchoring with M10 steel bolts. The surfaces are properly protected through a 5P cycle and powder-coated. Registered design, registered smart technology.
ZERO WIRE SYSTEM meaning no need for any type of wiring. Just place it in a sunny location and the solar-powered bench will provide all services (charging both USB and WIRELESS and internet connection). The new VIVA™ bench is designed to modernize today's cities with innovative technologies in the control and enjoyment of specific functionalities aimed at meeting the modern needs of citizens. The new cities are characterized by innovation and targeted services; thanks to its countless technological functions, the bench becomes a place not only for relaxation but also for gathering, where a new way of thinking about the city can be conceived. We can charge our smart devices via the front USB ports, connect to Wi-Fi, and receive real-time information on traffic, CO2 emissions, weather conditions, etc. Communicating has never been so easy!
Ample room for customer customization. The cross-disciplinary skills of our team, knowledge of materials and processing technologies allow us to tackle any custom project. Through the cloud connection, the VIVA PORTAL software manages the network of stations remotely on any device, at any time. Control and monitoring of the system from a single station. Manage all your stations in real-time easily and efficiently, even in multi-user mode. Monitor your station network and check the monitoring information sent. Battery charging monitoring; weather info; environmental info; device charge and discharge; error prediction and reports.
Module features: The magic happens thanks to the modules, the beating heart of the system, which allow you to customize the product according to your needs.
Unique technical features of the version: Total Control: Access via WIFI to the interface for real-time data visualization and control. InfoSensor: Environmental information from sensors such as temperature and humidity, charge and discharge of devices, energy production, instantaneous and time-based consumption, self-check with error prediction and reports. VivaDirect: Direct access to information and control via WIFI near the station. VivaPortal: Remote management and control portal in Cloud. Photovoltaic module: Monocrystalline 120W power. Batteries: AGM type / Capacity: up to 0.72 kWh. USB charging: 2 ports 5W and 2.2W. Charging sockets: 2 Schuko 220V sockets. Wireless charging: Power 20W / Efficiency over 80%. Cooling system: Air flow 170 m³/h, Temperature trigger: 38°C. LED light: backlit panel and dimmable cold white LED light.
Optional: Art. 391381 Air Pollution Sensor. Art. 391383 GPS position sensor. Art. 391384 RGBW dimmable LEDs with selectable scenarios via the system. Art. 391386 RAL color coatings upon request. Art. 391387 Module for installation without anchoring. Art. 391388 UVC antibacterial LED, also used to combat COVID-19 infection. Art. 391395 Bike or scooter holder module for two. Art. 391397 HOTSPOT module includes modem for connection via WIFI network. Art. 391398 Anti-vandal presence sensor. Art. 391399 Custom printing on the smart module. Art. 391400 Environmental noise sensor. Art. 391401 Heating for the seat.
| Power supply | Fotovoltaico |
| seat | 47 cm |
| length | 1,75 mt |
| Material | Acciaio e alluminio |
| Mounting | Tasselli |
| assembled | Si |
| Accessories | USB, LED, IoT |
| Color | Grigio e nero |
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
