Solar-Powered L-Bench with Backrest, 1.5m Seat, WIRELESS and USB Device Charging, White
code 311412
Category:
color
DESCRIPTION
Specifications
Downloads
Product version

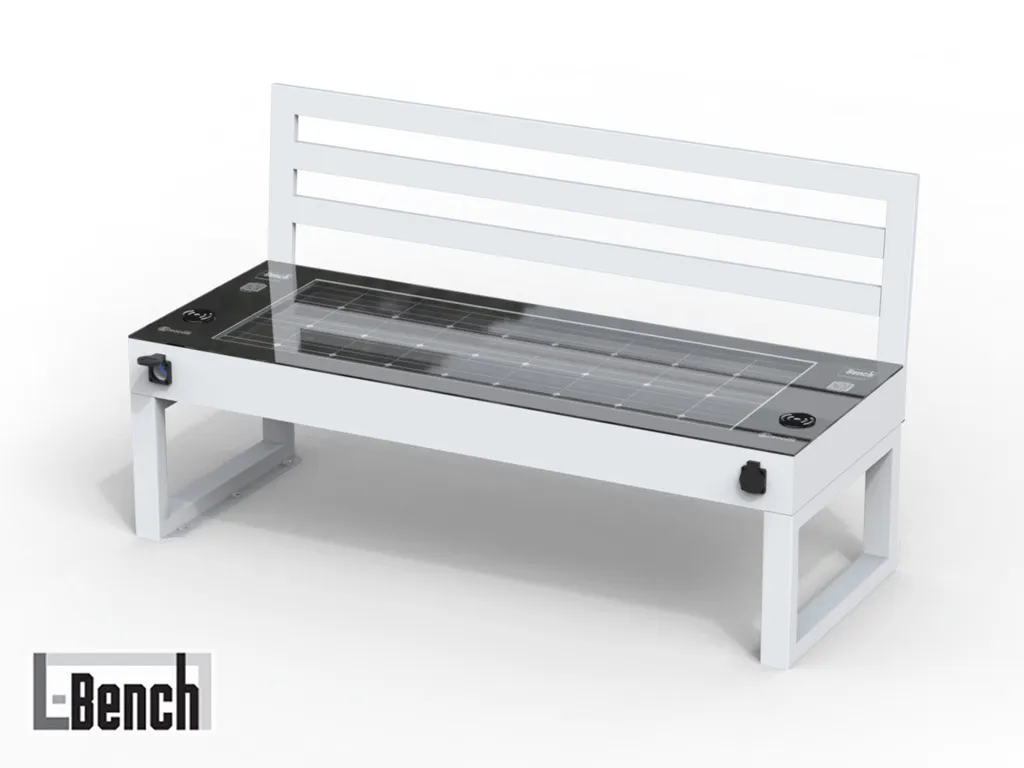

L-Bench Solar-Powered charging bench, 1.5m seat with WIRELESS and USB device charging, white colour
General Technical Features:
N° 2 shaped side supports with 60 x 40 mm tubular sections;
N° 1 ergonomic backrest made of 60 x 20 mm steel profiles.
Seat made from a single 4 mm thick polycarbonate sheet, housed in a steel box containing special perpendicular supports;
SMART charging module equipped with MPPT technology, with a photovoltaic panel and batteries embedded in the bench's structure;
Version Features:
Equipped with 4 USB ports for charging devices up to 2A and 2 wireless chargers with QI technology up to 20W built into the structure. The bench is supplied in a mounting kit (smart box + 2 legs).
Installation and Maintenance:
The legs are designed for anchoring with M10 steel bolts.
The surfaces are duly protected by a 5P cycle and powder-coated (See specifications on material protection.).
The surfaces are duly protected by a 5P cycle and powder-coated (See specifications on material protection.).
Registered design, registered smart technology.
ZERO WIRE SYSTEM, meaning no wiring of any kind is needed.
ZERO WIRE SYSTEM, meaning no wiring of any kind is needed.
Just place it in a sunny spot, and the self-powered bench with its solar panel will provide all services (both USB and WIRELESS charging).
The new L-Bench™ was created to modernise today's cities with innovative technologies for controlling and using specific functionalities, aimed at meeting the modern needs of citizens.
The new smart cities are defined by innovation and targeted services. Thanks to its countless technological functions, this bench becomes a place not only for relaxation but also for social gathering, where a new way of thinking about the city can be conceived.
We can charge our smart devices thanks to the front USB ports and wirelessly.
UNIQUE TECHNICAL FEATURES OF THIS VERSION:
Photovoltaic Module: Monocrystalline 100W power.
Batteries: AGM Type / Capacity: up to 0.72 kWh.
USB Charging: 2 ports 5W and 2.2W.
Wireless Charging: 20W QI Power / Efficiency over 80%.
Optional Extras:
Art. 391386 Custom RAL colour painting upon request.
Art. 391388 Antibacterial UVC LED, also used to combat COVID-19 infection.
Art. 391399 Custom printing on the Smart module.
VIVA BOARD CONTROL - VIVA SMART Control Board
Audio Interaction System (AIS) with Keypad
HOTSPOT Module with included Wi-Fi Modem for network connection
Mains Backup Module for VIVA SMART Series Benches
Bluetooth Audio System with Amplified Speaker for Public Spaces
20W QI Wireless Charger for VIVA SMART Benches
Standard USB: Dual USB-A QC3.0 20W Smart Device Charger
20W USB-C Charger: 1x USB-C + Dual USB-A QC3.0 for Smart Devices
Neutral White 4K LED System for VIVA SMART Products
RGBW LED System for VIVA SMART Products
