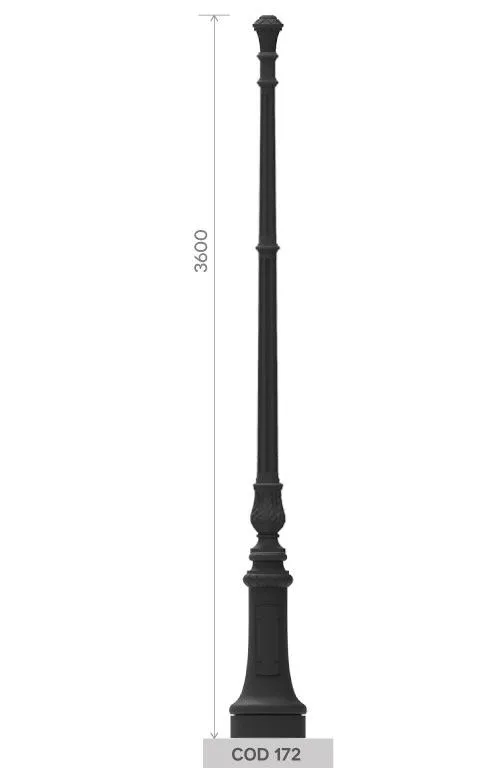

Cast Iron Pole UNI EN 1561 GJL250, styled with circular section body elements.
Height: 3600 mm.
The pole features a base with a circular lower part connected to a conical-cylindrical central part via a smooth, curved strip.
At the center, an inspection door in cast iron is prepared for the installation of a terminal block on the inside.
The base is finished with a floral decoration and connected to the shaft by a double circular band.
Base height: 960 mm.
Base width: 400 mm.
The shaft has a cylindrical lower part, followed by a conical-cylindrical element, decorated with an imposing acanthus leaf floral ornament.
The central part of the shaft, divided into two sections by a cylindrical strip, is fluted and of a truncated conical section and is finished with a wide smooth cylindrical band with curved edges.
The pole head, code TP1, is attached to the steel core via bolts, decorated with long stylized vegetal elements, and topped with a tiered cylindrical cap, decorated with a frieze of ribbon motifs.
Prepared for lantern attachment via a 3/4 GAS threaded tube also used for fixing cast iron components or for series 400 tops.
Head height: 180 mm.
Painted in anthracite black or other RAL color upon request.
Dimensions, shapes, and moldings as per the design that forms an integral part of the project.
Equipped with an M10 screw for grounding and a 55 mm diameter hole for the passage of an electrical cable inside.
All pole elements are made in a single cast.
Included components: Internal steel core FE 510 UNI 7810 hot-dip galvanized according to UNI 5745 standard.
