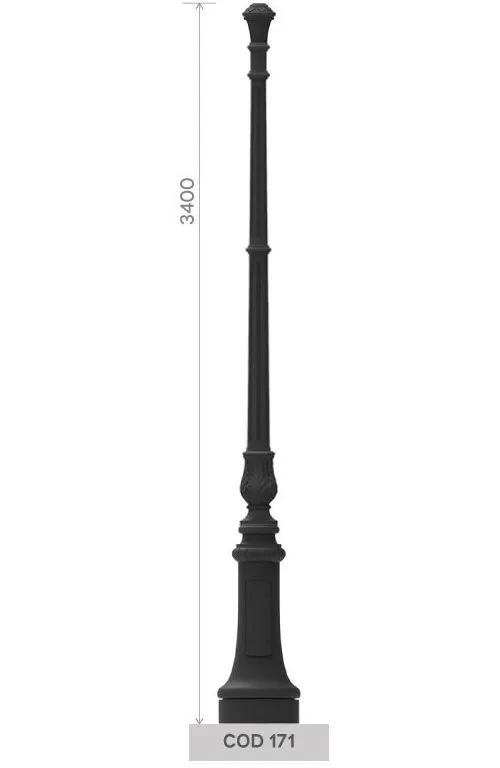

Cast iron pole UNI EN 1561 GJL250, styled with circular section body elements.
Height: 3400 mm.
The pole consists of a base with a circular lower part connected to a conical-cylindrical central part by a smooth bulged strip.
At the center, a cast iron inspection door is prepared for housing a terminal block on the inside.
The base is finished with a floral decoration and is connected to the shaft by a double circular band.
Base height: 960 mm.
Base width: 400 mm.
The shaft has a cylindrical lower part, followed by a conical-cylindrical element and decorated with an imposing ornamental acanthus leaf flower.
The central part of the shaft, divided into two by a cylindrical strip, is grooved and of a truncated conical section, ending in a wide smooth cylindrical band with bulged edges.
The pole head, COD TP1, attached to the steel core via bolts, is decorated with long stylized vegetal elements and topped with a stepped cylindrical cap, decorated with a frieze of ribbon motifs.
Prepared for lantern attachment via a 3/4 GAS threaded tube also used for fixing cast iron components or for 400 series ropes.
Head height: 180 mm.
Painted in anthracite black or other RAL color upon request.
Dimensions, shapes, and moldings as per the design that is an integral part of the project.
Equipped with an M10 screw for grounding and a 55 mm diameter hole for the passage of an electrical cable inside.
All pole elements are made in a single casting.
Included components: Internal steel core FE 510 UNI 7810 hot-dip galvanized according to UNI 5745 standard.
