Classic Artistic Challant Style Cast Iron Pole with Square CUT OFF LED Lantern 602012
code 100_294
category: Complete lighting poles, Cast iron poles
description
Styled cast iron pole with circular section body elements.

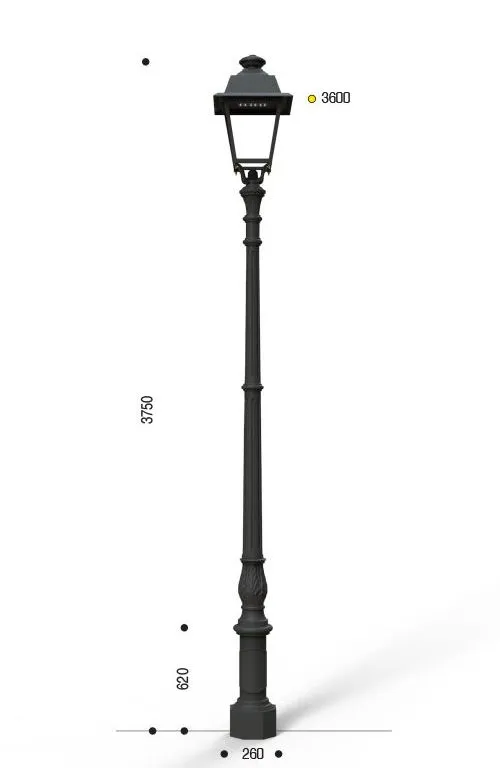

Total height 3750 mm; light source height 3600 mm.
The pole consists of a base, where the octagonal lower part is connected to the cylindrical central part by a stepped, conical-cylindrical element.
At the center, there is a cast iron inspection hatch designed to house a terminal block inside.
The base is finished with a double cylindrical band.
Base height 620 mm; base width 260 mm.
The shaft has a cylindrical lower part, followed by a conical-cylindrical element, and is decorated with an impressive ornamental flower with acanthus leaves.
The central part of the shaft, divided in two by a cylindrical band, is fluted with a truncated cone section and is finished with a wide, smooth cylindrical band with rounded edges.
The TP1 pole head, fixed to the steel core with bolts, is decorated with long, stylized plant elements and is topped by a stepped cylindrical cap, decorated with a ribbon-motif frieze.
The pole is designed for the insertion of lantern COD 602, bolted to the pole's steel core.
Equipped in the steel core with an M10 screw for grounding and a 55 mm diameter hole for the passage of an electrical cable inside.
All cast iron or aluminum elements are made from a single casting.
SURFACE PROTECTION
The cast iron surfaces are duly sandblasted before the painting process.
The steel surfaces are hot-dip galvanized.
Painting is carried out using the following cycle:
one coat of single-component zinc phosphate primer, a finishing coat of highly protective catalyzed two-component paint.
Standard color: antique black, EUROCOMITALIA type.
Upon request, painting according to the customer's RAL is possible.
HARDWARE
Screws and accessories in AISI 316 stainless steel.
INCLUDED COMPONENTS
Galvanized steel inner core.
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
Cast iron pole with small octagonal base
Artistic Square Die-Cast Aluminum Lantern with E-Light LED Technology 40W - 4838lm - 3k - Asymmetric Optic
