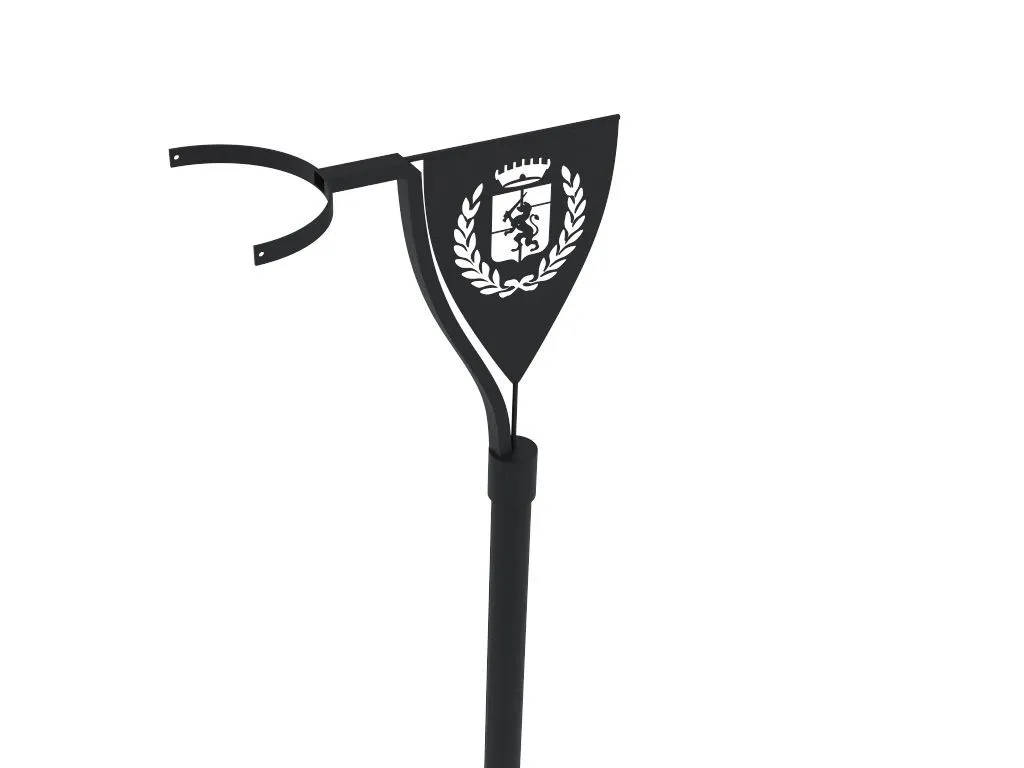

Pole top mount for Luna-type luminaires, code TPLX4, made from a 40x25 mm tubular profile, shaped as shown in the drawing.
At the upper end, the tube is welded at a 90° angle to another tube (40x25mm) and finished with a 180° steel semi-circle measuring 30x5mm.
The pole top mount features a central sheet metal plate with a logo. At the end of the semi-circle, there are holes for attaching the luminaire.
In the center of the semi-circle, connecting to the tube, there is a hole for cable routing.
The pole top mount is designed for installation on 76mm diameter poles and is secured with stainless steel grub screws.
Upgrading your existing lighting points is simple and cost-effective with our TPLUNA product.
It can be installed on any existing pole, regardless of diameter.
Offers various aesthetic solutions for 1, 2, 3, or 4 luminaires, ensuring they meet current standards.
Thanks to its tilting technology, the system allows the luminaire to be adjusted parallel to the road, even when the pole it is mounted on is not perpendicular to the road (up to ±30°).
SURFACE PROTECTION
Cast iron surfaces are thoroughly sandblasted before the painting process.
Steel surfaces are galvanized.
The painting process is as follows:
one coat of single-component zinc phosphate primer, followed by a finishing coat of highly protective two-component catalyzed paint.
Standard color: EUROCOMITALIA antique black.
Custom RAL colors are available upon request.
HARDWARE
Screws and accessories are made of stainless steel.
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Assembly instructions
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
