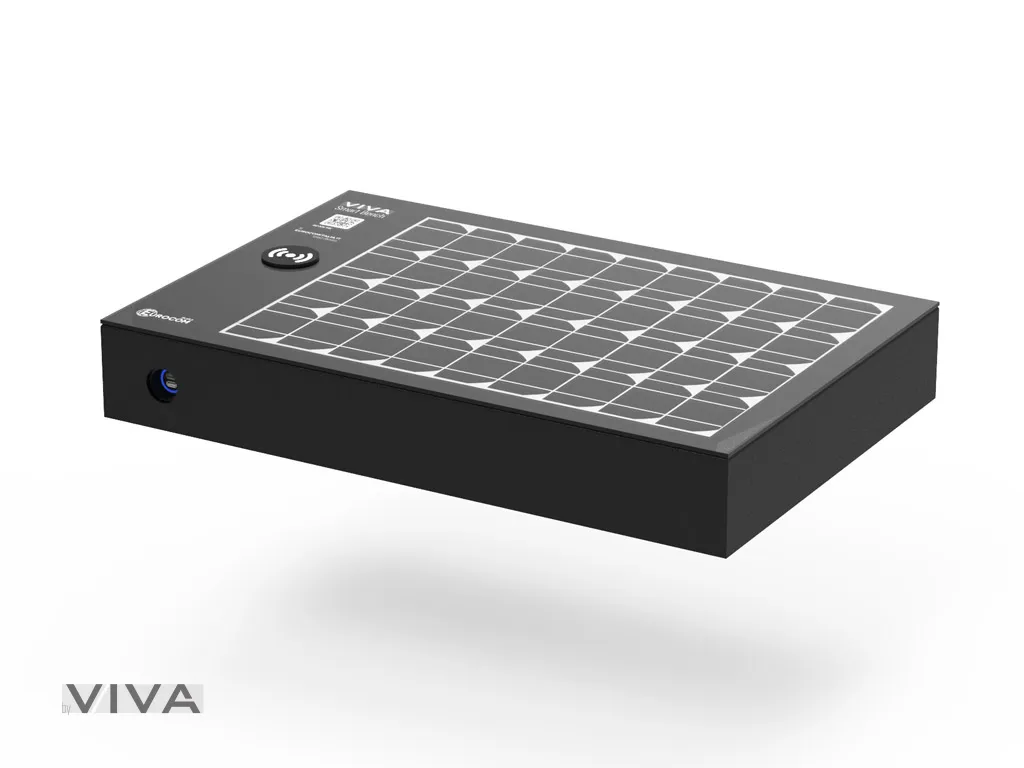

Smart Case for VIVA SMART bench - photovoltaic powered.
The Smart module is designed to be mounted on any structure that can accommodate it.
General technical features:
Made of pressed 3mm thick sheet metal.
SMART charging module equipped with MPPT technology with a photovoltaic panel and batteries embedded in the structure;
Module features:
Equipped with USB ports for charging devices up to 2A and a wireless charger with QI technology up to 20W built into the structure;
Neutral white LED backlighting system;
Includes a local management and control system via WIFI connection or in the CLOUD via a portal;
Temperature, humidity, device charge and discharge sensors, and weather sensors with an automatic stand-by system in case of prolonged absence of solar radiation;
Self-management and error prediction system with automatic reports.
Fixing and maintenance:
The module can be embedded in any structure; it has an outlet on the side for various connectors.
The surfaces are duly protected by a 5P cycle and are powder-coated.
Unique technical features of this version:
Total Control: WIFI access to an interface for real-time data viewing and control.
InfoSensor: Environmental information from sensors such as temperature and humidity, device charge and discharge, energy production, instant and long-term consumption, and self-check with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI near the station.
VivaPortal: Remote management and control portal in the Cloud (requires an internet connection, not provided).
Photovoltaic module: Monocrystalline PERC 60W power.
Batteries: AGM type with capacity up to 0.72 kWh.
USB Charging: 2 ports 5W and 2.2W.
Wireless Charging: 20W Power / Efficiency up to 90%.
Cooling system: Air flow: 170 m³/h, Temperature trigger: 38°C.
Backlit panel and dimmable cool white LED light.
Specifications
| Accessories | USB, Wireless ch., IOT |
| Power supply | Fotovoltaico |
| Material | Steel |
| Potenza PV | 60W |
| USB-A | 2 |
| Wireless Qi | 1 |
| internet hotspot | No |
| Wi-Fi | Si |
The VIVA SMART system is based on ZERO WIRE SYSTEM technology: no wiring required.
Simply place the product in an area exposed to sunlight, and the integrated photovoltaic panel will ensure self-sufficiency for all available services, including device charging via USB ports and wireless technology.
The VIVA™ series products were created with the aim of modernizing urban spaces through innovative technologies, geared towards the control and use of specific functionalities to meet the needs of contemporary citizens.
The VIVA™ series redefines the very concept of public space, transforming it not only into a place for rest and relaxation, but into a hub for gathering and interaction.
Depending on the model, the system allows you to:
- charge smart devices (tablets, smartphones) via USB ports
- charge compatible devices via integrated wireless technology
- connect to the Wi-Fi network
- consult real-time information on traffic, air quality, weather conditions, and much more
The VIVA™ series offers extensive customization possibilities.
The cross-functional skills of our team and our deep knowledge of materials and processing technologies allow us to tackle any custom project.
Through a cloud connection, the VIVA PORTAL software allows for centralized remote management of the entire network of stations, on any device and at any time.
A single platform to control and check the system status in real time, in a simple, efficient, and multi-user way:
- monitoring of battery charge status
- collection of weather and environmental data
- monitoring of device charge and discharge cycles
- predictive anomaly detection and error reporting system
Surface protectionGENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protectionSCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
