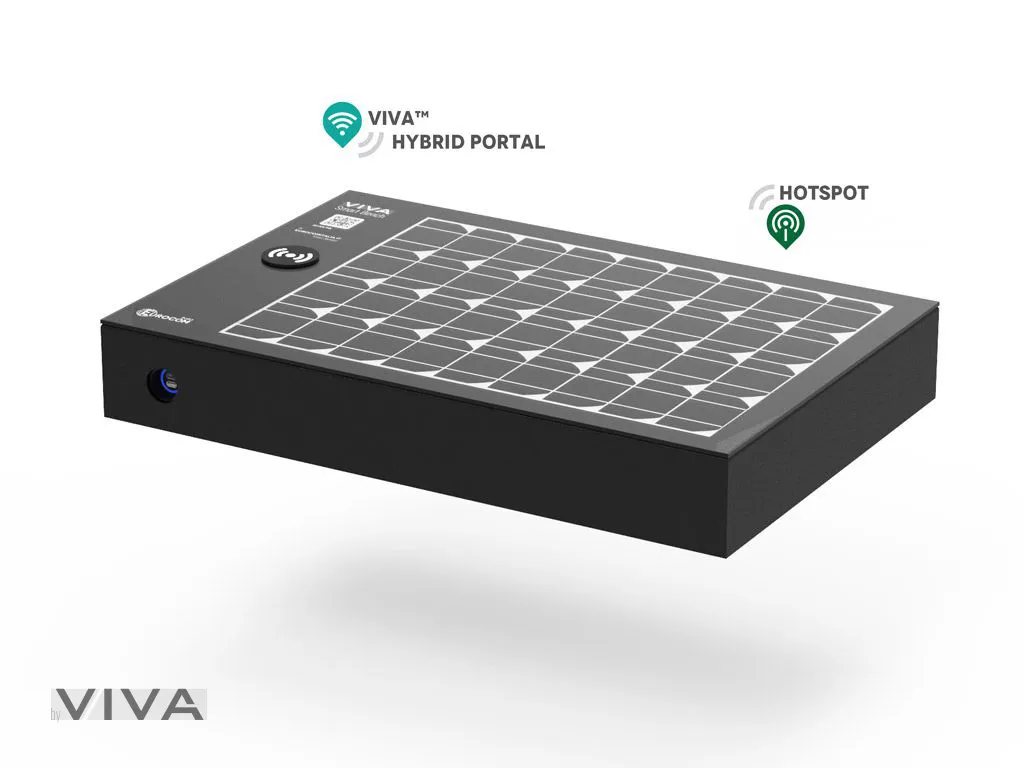

Smart Case SMART HOTSPOT - Solar-Powered

Smart Case for VIVA SMART bench - solar-powered.
The Smart module is designed to be mounted on any structure that can accommodate it.
General technical features:
Made of 3mm thick pressed sheet metal.
SMART charging module equipped with MPPT technology with a photovoltaic panel and batteries embedded in the structure;
Module features:
Equipped with USB ports for charging devices up to 2A and a built-in wireless QI technology charger up to 20W;
Neutral white LED backlighting system;
Includes local management and control system via WIFI connection or in the CLOUD via a portal;
Temperature, humidity, device charge and discharge sensors, weather sensors with an automatic standby system in case of prolonged lack of solar radiation;
Self-management and error prediction system with automatic reports.
Internet connection via 4G LTE network using a data card (not supplied) or via LAN or WIFI REPEATER;
Customization of the HOTSPOT access point with social media tool integration and the option for advertising placements at an additional cost;
Integration with a GDPR-compliant HOTSPOT PORTAL with customization of user privileges and pages, system management at an additional cost;
Additional power supply via a high-efficiency Tempering charger managed by an energy-saving system modulated according to the solar panel's efficiency;
Installation and maintenance:
The module can be embedded in any structure; the side features an outlet for the various connectors.
The surfaces are duly protected by a 5P cycle and powder-coated.
Unique technical features of this version:
Total Control: WIFI access to an interface for real-time data viewing and control.
InfoSensor: Environmental information from sensors such as temperature and humidity, device charge and discharge, energy production, instantaneous and long-term consumption, self-check with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI in the vicinity of the station.
VivaPortal: Remote management and control portal in the Cloud (requires an internet connection, not supplied).
Photovoltaic module: Monocrystalline PERC 60W power.
Batteries: AGM type with a capacity of up to 0.72 kWh.
USB Charging: 2 ports 5W and 2.2W.
Wireless Charging: 20W power / Up to 90% efficiency.
Cooling system: Air flow: 170 m³/h, Temperature trigger: 38°C.
Backlit panel and dimmable cool white LED light.
Internet connection technology: 4G LTE Speed up to 150Mbps, or via LAN cable, or via WIFI REPEATER.
Backup charging transformer: 230V AC.
