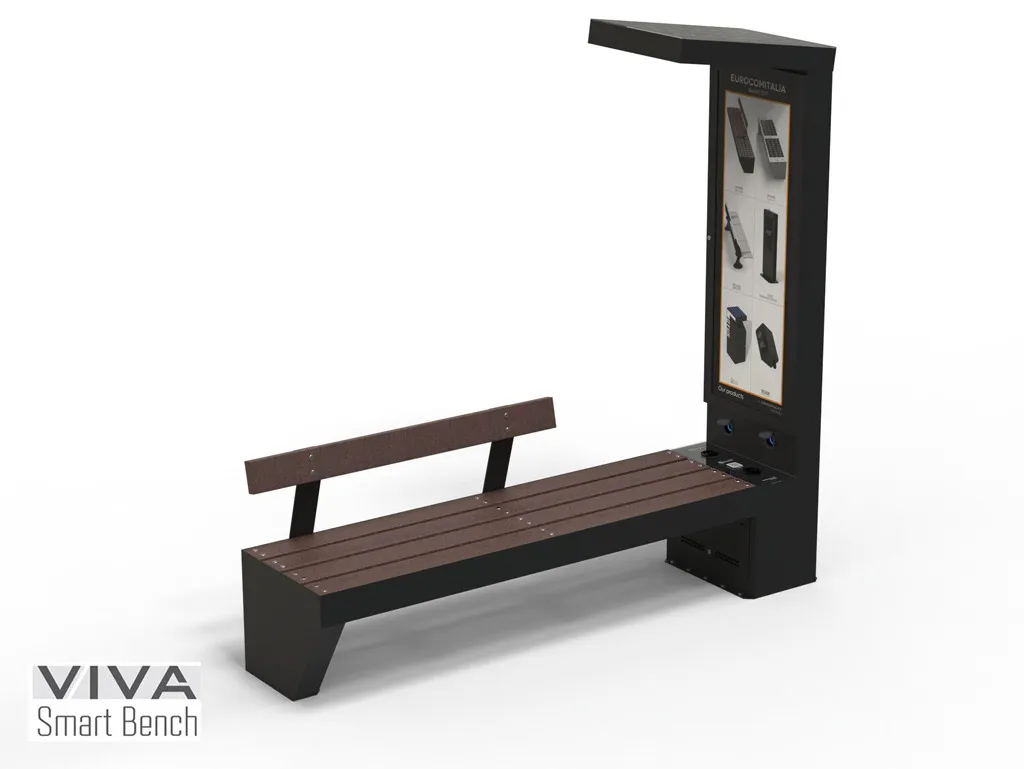

Smart bench - VIVA ADV model intelligent bench for urban furniture, designed for device charging.
General Technical Features:
N° 2 trapezoidal side supports made of 30/10 thickness sheet metal;
Seat and backrest made with STRONGPLAST (recycled plastic) profiles, 120 x 40 mm section, bolted onto the seat and backrest supports;
SMART charging module equipped with MPPT technology, with a photovoltaic panel and batteries embedded within the bench's structure.
Version Features:
Equipped with USB ports for charging devices up to 2A and a wireless charger with QI technology built into the structure;
Neutral white LED lighting system;
Includes local management and control system via WIFI connection or in the CLOUD via a portal;
Temperature, humidity, device charge/discharge sensors, and weather sensors with an automatic standby system in case of prolonged absence of solar radiation;
Self-management and error prediction system with automatic reports;
Totem for displaying fixed advertising panels.
Fixing and Maintenance:
The trapezoidal feet are designed for anchoring with M10 steel bolts.
The surfaces are properly protected by a 5P treatment cycle.
Unique Technical Features of this Version:
Total Control: WIFI access to an interface for real-time data visualization and control.
InfoSensor: Environmental information from sensors such as temperature and humidity, device charge and discharge, energy production, instantaneous and long-term consumption, self-check with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI when near the station.
VivaPortal: Remote management and control portal in the Cloud (requires the system to be connected to the internet).
Photovoltaic Module: Monocrystalline with 60W of power.
Batteries: AGM type, capacity up to 0.72 kWh.
USB Charging: 4 ports with 5W and 2.2W.
Wireless Charging: 20W QI power.
Cooling System: Airflow of 170 m³/h, Temperature Trigger: 38°C.
LED Light: Dimmable neutral white LED lighting.
| assembled | No |
| Mounting | tasselli |
| Material | Acciaio e Strongplast |
| Color | Black |
| Accessories | Totem, USB, LED, IOT |
| Potenza PV | 60W |
| USB-A | 4 |
| Wireless Qi | 2 |
| internet hotspot | SI |
| Wi-Fi | Si |
VIVA Products - Description
STRONGPLAST Specifications
GENERAL INFORMATION ON STRONGPLAST MATERIAL
The material colors, including those shown in photos and technical documentation, are purely indicative and depend on the availability of STRONGPLAST profile colors at the time of production.
All steel parts used in STRONGPLAST structures are adequately protected.
All parts are joined by stainless steel screws embedded in the structure.
All STRONGPLAST products, including play equipment and furniture, have no protruding parts, either in plastic or any other material.
STRONGPLAST is maintenance-free, vandal-proof, does not yellow, is weather-resistant, and fire-retardant.
All playground products are certified according to the UNI EN 1176 standard.
Products made of STRONGPLAST are CAM certified (Minimum Environmental Criteria).
Surface protection
Assembly instructions
Screw protection
SCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
