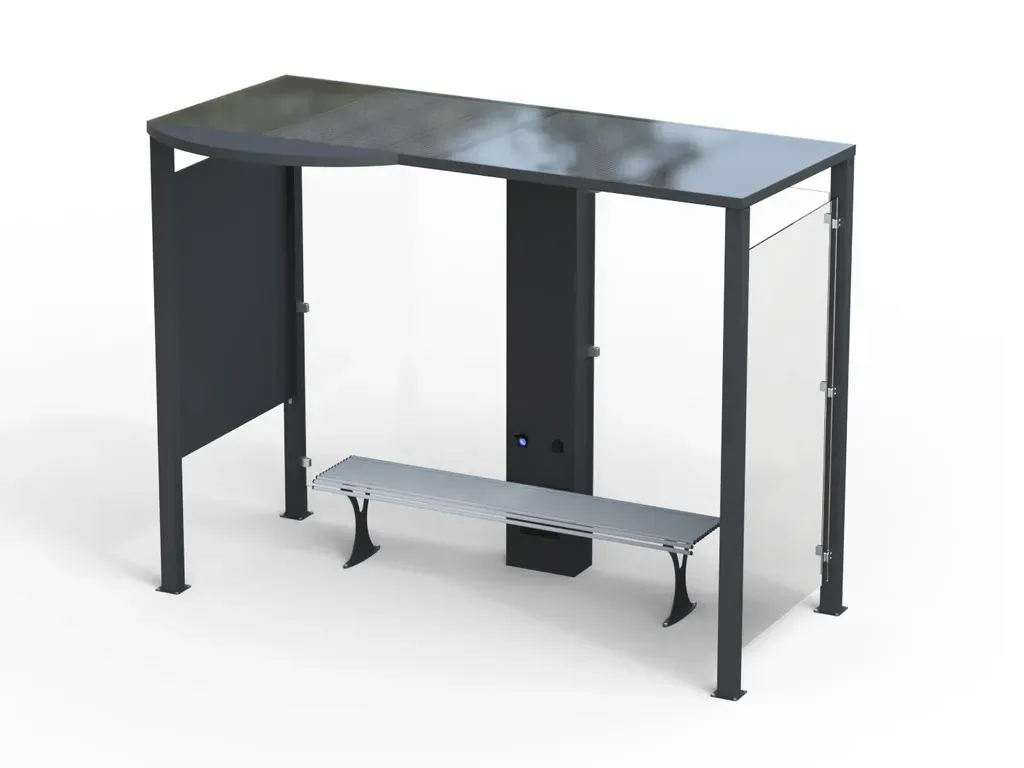

3m Smart bus shelter with a photovoltaic panel roof and bench for bus waiting areas.
General Technical Features:
Structure painted using a 5P cycle;
Module composed of straight steel upright tubes (80 x 80 mm section), bolted to the roof structure;
A fixing plate with M10 anchor bolts is present at the base of the tubes;
Mesh-like roof structure made of tubular steel, on which the photovoltaic panels rest;
The roof is designed to hold photovoltaic panels that power the system;
Photovoltaic panels are embedded in the roof structure; the batteries and electronic management system are located at the base;
Equipped with a neutral white LED lighting system;
A gutter for water drainage is located at the rear of the roof;
Central upright with four USB ports for charging devices;
Rear panels and side infills are fixed to the structure with special steel clamps;
Seat made with 6 mm thick sheet metal side supports and a seating area with 16 round bars of 20 mm.
Unique Features of This Version:
Equipped with 4 USB ports for charging devices up to 2A;
Neutral white LED backlighting system.
Unique Technical Specifications of This Version:
Photovoltaic Module: Monocrystalline 400W power.
Batteries: AGM type / Capacity up to 1.8 kWh.
USB Charging: 4 ports 5W and 2.2W.
LED Light: Neutral White.
Included addons
391375 Neutral White 4K LED System for VIVA SMART Products
391382 Standard USB: Dual USB-A QC3.0 20W Smart Device Charger
Optional addons
391377 RGBW LED System for VIVA SMART Products
391379 Basic Control and Sensor Kit for VIVA smart series: Fan, Humidity/Temperature Sensor, and Light Control with Dusk Sensor
391397 HOTSPOT Module with included Wi-Fi Modem for network connection
391402 20W USB-C Charger: 1x USB-C + Dual USB-A QC3.0 for Smart Devices
Specifications
| Power supply | Fotovoltaico |
| Potenza PV | 400W |
| USB-A | 4 |
| Batteria | 1x80Ah AGM |
| LED | Si |
| length | 3 mt |
| Material | Acciaio e policarbonato |
| Mounting | Tasselli |
| assembled | No |
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
GENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
Screw protectionSCREWS AND BOLTS
All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
VIVA Products - DescriptionThe VIVA SMART system is based on ZERO WIRE SYSTEM technology: no wiring required.
Simply place the product in an area exposed to sunlight, and the integrated photovoltaic panel will ensure self-sufficiency for all available services, including device charging via USB ports and wireless technology.
The VIVA™ series products were created with the aim of modernizing urban spaces through innovative technologies, geared towards the control and use of specific functionalities to meet the needs of contemporary citizens.
The VIVA™ series redefines the very concept of public space, transforming it not only into a place for rest and relaxation, but into a hub for gathering and interaction.
Depending on the model, the system allows you to:
- charge smart devices (tablets, smartphones) via USB ports
- charge compatible devices via integrated wireless technology
- connect to the Wi-Fi network
- consult real-time information on traffic, air quality, weather conditions, and much more
The VIVA™ series offers extensive customization possibilities.
The cross-functional skills of our team and our deep knowledge of materials and processing technologies allow us to tackle any custom project.
Through a cloud connection, the VIVA PORTAL software allows for centralized remote management of the entire network of stations, on any device and at any time.
A single platform to control and check the system status in real time, in a simple, efficient, and multi-user way:
- monitoring of battery charge status
- collection of weather and environmental data
- monitoring of device charge and discharge cycles
- predictive anomaly detection and error reporting system
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
