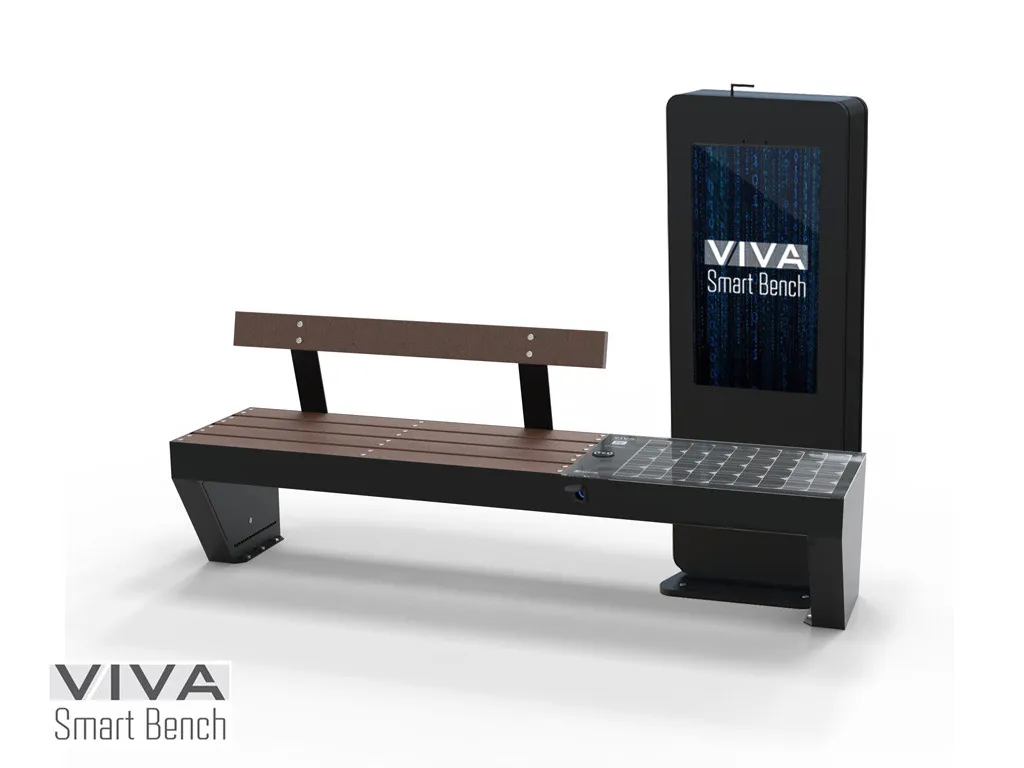

Smart bench for urban furnishing, VIVA SIGNAGE model, with a high-brightness advertising totem and internet access.
General Technical Features:
N° 2 trapezoidal side supports made of 30/10 gauge sheet metal;
Seat and backrest made with 120 x 40 mm STRONGPLAST profiles (recycled plastic), bolted onto the seat and backrest supports;
SMART charging module featuring MPPT technology with a monocrystalline photovoltaic panel with PERC technology and batteries embedded in the bench structure;
Outdoor-rated digital signage totem made entirely of aluminum with an inspection door, equipped with a 46-inch vertical monitor.
Version Features:
Equipped with N° 2 USB ports for charging devices up to 2 A and a wireless charger built into the structure;
Neutral white LED backlighting system;
Includes local management and control system via WIFI connection or in the CLOUD via VIVAPORTAL with 12 months of support;
Sensors for temperature, humidity, device charging and discharging, and weather, with an automatic stand-by system in case of prolonged lack of solar radiation;
Self-management and error prediction system with automatic reports;
Internet connection via 4G LTE network using a data card (not supplied), or via LAN or WIFI REPEATER;
Customizable HOTSPOT access point with social media integration and options for paid advertising;
Integration with a GDPR-compliant HOTSPOT PORTAL, with customization of user privileges and pages, and paid system management;
Additional power supply via a high-efficiency charger managed by an energy-saving system modulated according to solar panel efficiency;
Totem powered by 230V AC mains;
Multimedia advertising totem managed entirely on the VIS cloud platform.
Fixing and Maintenance:
The trapezoidal feet are designed for anchoring with M10 steel bolts.
The SMART module is removable and can be sent for maintenance without needing to remove the entire bench.
The surfaces are duly protected by a 5P cycle and are powder-coated.
Unique Technical Features of this Version:
Total Control: Access the interface via WIFI for real-time data visualization and control.
InfoSensor: Environmental information from sensors such as temperature and humidity, device charge and discharge, energy production, instantaneous and long-term consumption, and self-check with error prediction and reports.
VivaDirect: Direct access to information and control via WIFI when near the station.
VivaPortal: Cloud-based portal for remote management and control.
Photovoltaic Module: 60W power Monocrystalline.
Batteries: AGM type, capacity up to 0.72 kWh.
USB Charging: 2 ports, 5W and 2.2W.
Wireless Charging: 10W power / Over 80% efficiency.
Cooling System: Air flow 170 m³/h, Temperature trigger: 38°C.
LED Light: Backlit panel and dimmable neutral white LED light.
Internet Connection Technology: 4G LTE, speed up to 150 Mbps, or via LAN cable or WIFI REPEATER.
Backup Charging Transformer: 230V AC.
Totem Power Supply: from 230V AC mains.
Included addons
311381 Air pollution sensor
391375 Neutral White 4K LED System for VIVA SMART Products
391379 Basic Control and Sensor Module for VIVA Smart Series: Fan, Humidity/Temperature Sensor, and Light Control with Twilight Sensor
391382 Standard USB: Dual USB-A QC3.0 20W Smart Device Charger
391392 20W QI Wireless Charger for VIVA SMART Benches
391397 HOTSPOT Module with included Wi-Fi Modem for network connection
Optional addons
311381 Air pollution sensor
391377 RGBW LED System for VIVA SMART Products
391383 VIVA SMART Wooden Bench Seat
391402 20W USB-C Charger: 1x USB-C + Dual USB-A QC3.0 for Smart Devices
Specifications
| Color | Black |
| Accessories | Totem, USB , LED , IOT |
| Material | Acciaio, Alluminio e Strongplast |
| Mounting | Tasselli |
| assembled | si |
| Power supply | Fotovoltaico e Rete |
| internet hotspot | SI |
| backrest height | 80 cm |
| length | 2,2 mt |
| Potenza PV | 60W |
| USB-A | 2 |
| Wireless Qi | 1 |
| internet hotspot | SI |
| Wi-Fi | Si |
Components
352051 Urban Digital Signage Totem with Integrated 43" Display, VIS Management System Included
311303 VIVA HOTSPOT Solar-Powered Smart Bench | IoT Ready with Wireless & USB Charging, LED Lighting, and Internet Hotspot | 2.2m Recycled Plastic
The VIVA SMART system is based on ZERO WIRE SYSTEM technology: no wiring required.
Simply place the product in an area exposed to sunlight, and the integrated photovoltaic panel will ensure self-sufficiency for all available services, including device charging via USB ports and wireless technology.
The VIVA™ series products were created with the aim of modernizing urban spaces through innovative technologies, geared towards the control and use of specific functionalities to meet the needs of contemporary citizens.
The VIVA™ series redefines the very concept of public space, transforming it not only into a place for rest and relaxation, but into a hub for gathering and interaction.
Depending on the model, the system allows you to:
- charge smart devices (tablets, smartphones) via USB ports
- charge compatible devices via integrated wireless technology
- connect to the Wi-Fi network
- consult real-time information on traffic, air quality, weather conditions, and much more
The VIVA™ series offers extensive customization possibilities.
The cross-functional skills of our team and our deep knowledge of materials and processing technologies allow us to tackle any custom project.
Through a cloud connection, the VIVA PORTAL software allows for centralized remote management of the entire network of stations, on any device and at any time.
A single platform to control and check the system status in real time, in a simple, efficient, and multi-user way:
- monitoring of battery charge status
- collection of weather and environmental data
- monitoring of device charge and discharge cycles
- predictive anomaly detection and error reporting system
Prodotti VIS - DescrizioneVIS2026 is the cloud platform for digital signage that transforms any screen into a live communication channel, managed remotely in just a few clicks.
From the web panel, also available as a smartphone app, you can schedule images, videos, YouTube, web pages, weather with real-time news, and streaming TV and radio: the
content arrives on the monitors instantly, with push updates and guaranteed operation even without a connection thanks to a local copy on the device.
Each screen is monitored in real-time, with a map, health status, automatic email alerts, screenshots, and remote commands. Granular roles and permissions allow each
collaborator to manage only their own monitors and content.
The innovative core is AIUA, the virtual assistant with a realistic 3D avatar that speaks, listens, and responds to the public vocally: multilingual voice recognition, synchronized
lip movement, natural gestures, and gaze directed at the interlocutor. Each agent is configurable for its own sector, with dedicated knowledge, a choice of AI engines, and integrated tools like weather, news, and web search. An intelligent reception, active 24/7, that informs, guides, and amazes your customers.
Specifiche STRONGPLASTGENERAL INFORMATION ON STRONGPLAST MATERIAL
The material colors, including those shown in photos and technical documentation, are purely indicative and depend on the availability of STRONGPLAST profile colors at the time of production.
All steel parts used in STRONGPLAST structures are adequately protected.
All parts are joined by stainless steel screws embedded in the structure.
All STRONGPLAST products, including play equipment and furniture, have no protruding parts, either in plastic or any other material.
STRONGPLAST is low-maintenance, vandal-proof, does not yellow, is weather-resistant, and fire-retardant.
All playground products are certified according to the UNI EN 1176 standard.
Products made of STRONGPLAST are CAM certified (Minimum Environmental Criteria).
Protezione delle superficiGENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
Protezione viterieSCREWS AND BOLTS All screws, bolts, and other fastening accessories are generally supplied in stainless steel.
Istruzioni di montaggioGENERAL ASSEMBLY INSTRUCTIONS
All products are accompanied by specific assembly instructions for the model provided.
Each product, based on its nature and intended use, requires dedicated installation methods.
For detailed technical specifications, please refer to the dedicated documentation.
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
